Ultra-Low-Power Ultrasonic wind meter PRO (ULP PRO)

https://calypsoinstruments.com/web/image/product.template/197/image_1920?unique=cfe1ad0

Ultra Low Power-Ultrasonic wind meter PRO (ULP PRO)

$ 475.00 475.0 USD $ 475.00

475.00 €

Not Available For Sale

  • Speed range
  • Protocols
  • ​

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Free Shipping beyond 300$ (Not eligible when a discount is applied)



This combination does not exist.


Ultra-Low-Power Ultrasonic wind meter PRO (ULP PRO).

Wind meter, a 45m/s IoT, Ultra-Low-Power Ultrasonic wind meter PRO (ULP PRO).

     Ultra-Low-Power (RS485 NMEA 0183: 0,25 mA @5V, 1Hz / MODBUS : 1 mA @5V, 1Hz)

     Ultra-Low-Power (UART): 0,15 mA @5V, 1Hz

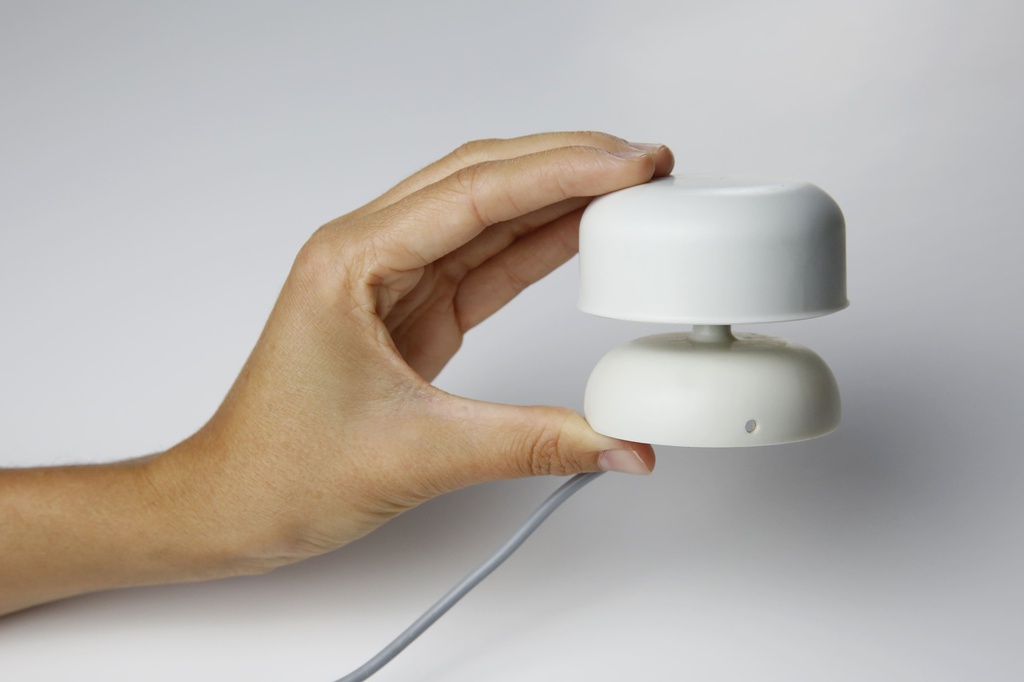

     Small: 68 mm (2.68 in.) diameter.

     Light: 200 grams (7.05 oz.)



The ULP PRO represents an important technology breakthrough condensing an extensive R+D investment that brings us to a new generation of ultrasonic wind meters.

  • Both shape and firmware have been enhanced for an improved rain performance, being this point key for static applications such as weather stations.
  • Mechanical design has been revamped making the unit more robust and dependable.
  • We feel very proud to release a unit that requires under 0,25mA @1Hz (RS485), and 0,15mA @1Hz (UART).

  (Further protocols under request).


485 MODBUS

The 485 Modbus product can provide 1-minute, 5-minute, and 10-minute averages, as well as the maximum gust recorded.


Certifications



Applications:

Agriculture: Precision Agriculture/ Spraying/ Fertilicers and Irrigation
Energy & Industry : Solar / Wind Power / Cranes /Elevators / Gas, oil & Industrial Plants

Infraestructures & construction: Tunnels, Roads & Bridges/ Buildings & Temporary Constructions

Marine: Fishing & Comercial/ Sailing, yacthing and watersports/ Marinas and Harbours

Scientific & Meteorology: Research/ Metereological monitoring/ Air Quality and environmental/ Smart Cities


The package contains the following:

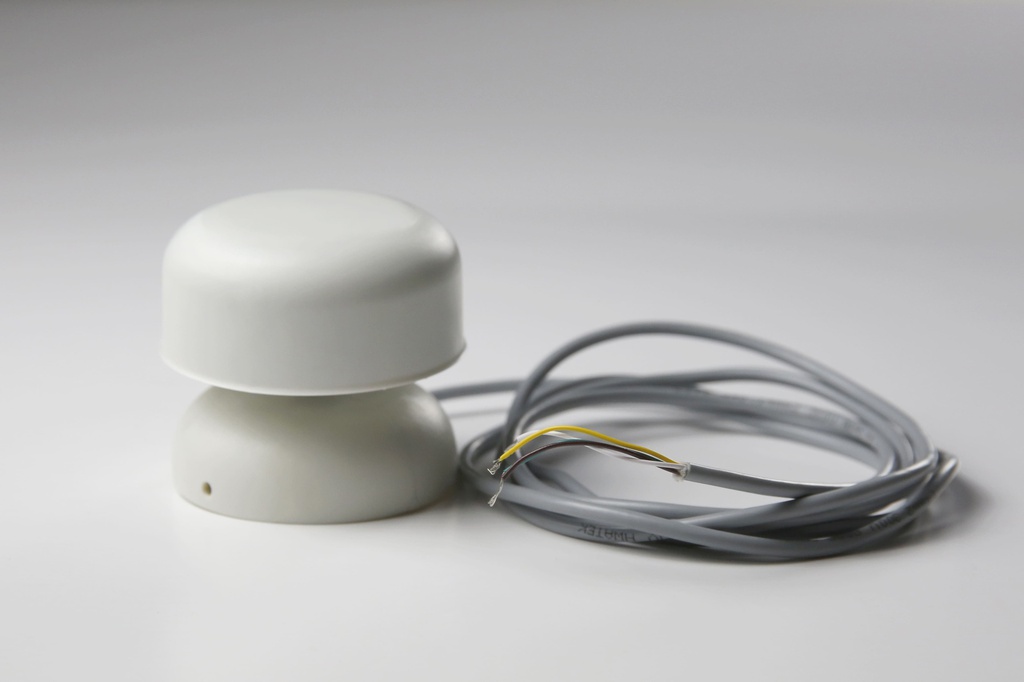

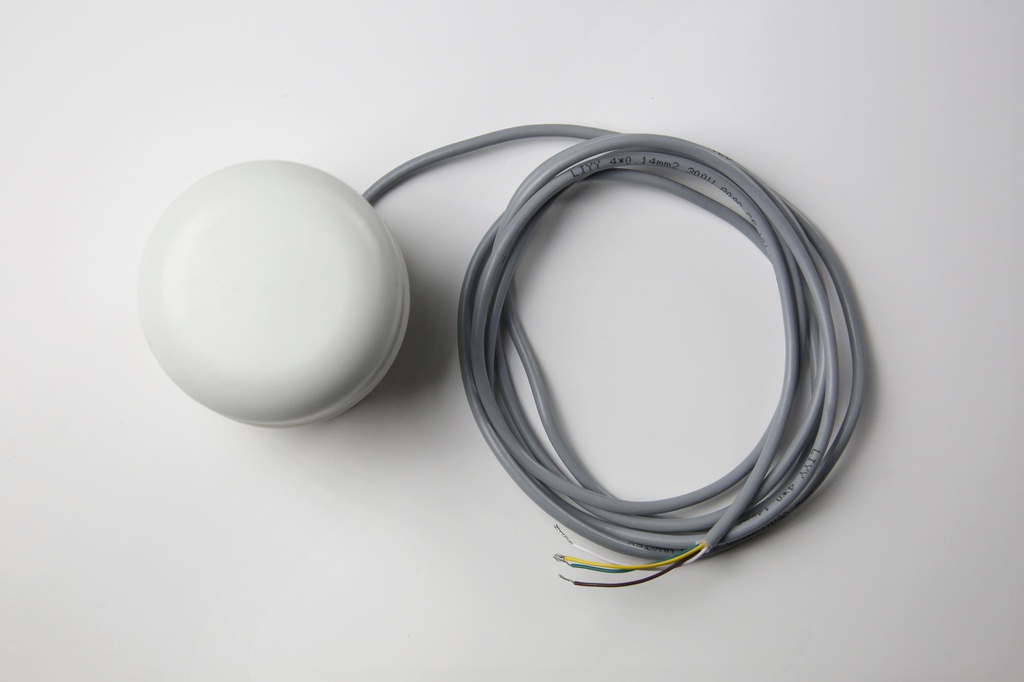

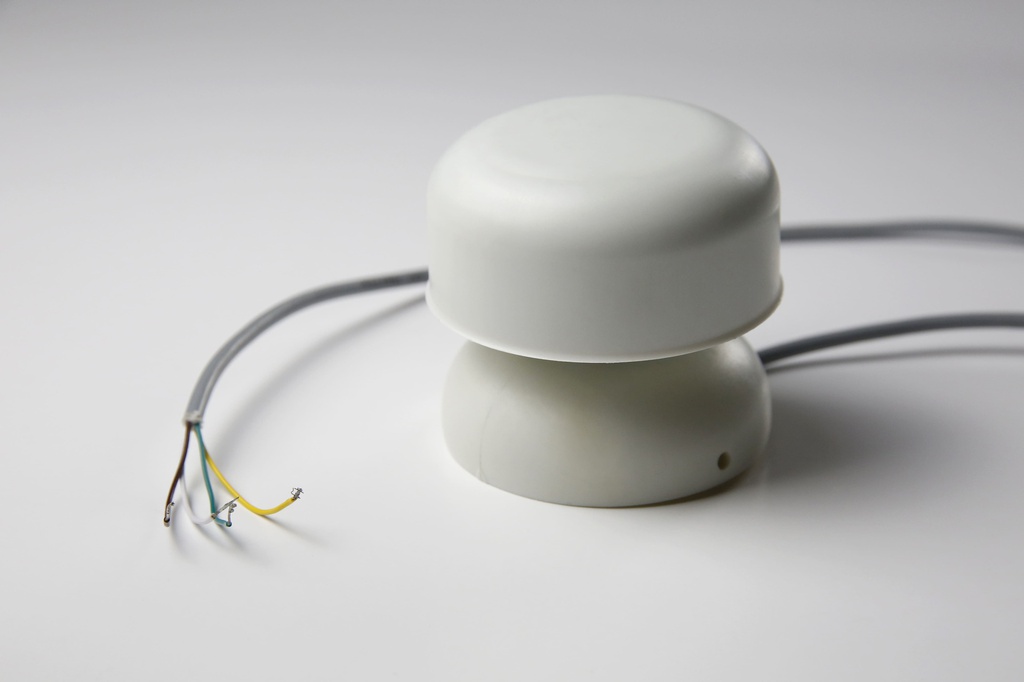

  • One ULP Pro Wind Instrument plus 2 meters (6.5 ft) of cable for connection
  • Serial number reference on the side of the packaging.
  • A quick user guide on the back of the packaging and some more useful information for the customer.
  • M3 headless screw (x7)


Internal Reference Codes:

The SKU/CMI product number for the ULP Pro 45m/s Wind Meter with RS485 (NMEA0183) / MODBUS protocol is CMI1019.

The SKU/CMI product number for the ULP Pro 45m/s Wind Meter with UART/12c protocol is CMI1032.
he SKU/CMI product number for the ULP Pro 45m/s Wind Meter with SDI12 protocol is CMI1062.



Material
Injected molded


Dimensions
Diameter : 68 mm (2.68 in.)
Height : 65 mm (2.56 in.)
Weight : 200 grams (7.05 oz.)
Wind Speed
Range : 0.5-45 m/s (1.12 -100 mph)
Accuracy : ±0.1 m/s at 10 m/s (0.22 mph at 22.4 mph)

Wind Direction
Range : 0-359º
Accuracy : ± 1

Wind Information

Aparent wind speed & direction


Sensors

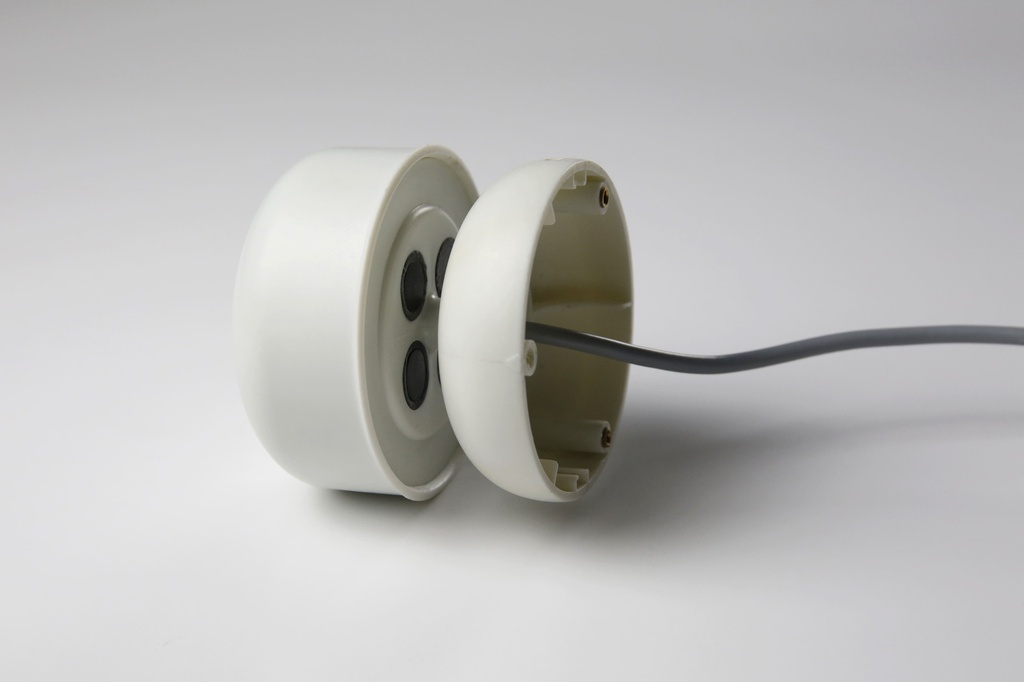

Ultrasonic transducers (4x)

 Sample rate
1 Hz to 10 Hz (configurable)

Power

3.3-18 DCV



Firmware
Upgradable via configuration tool


IP Code
IPX8

Mount

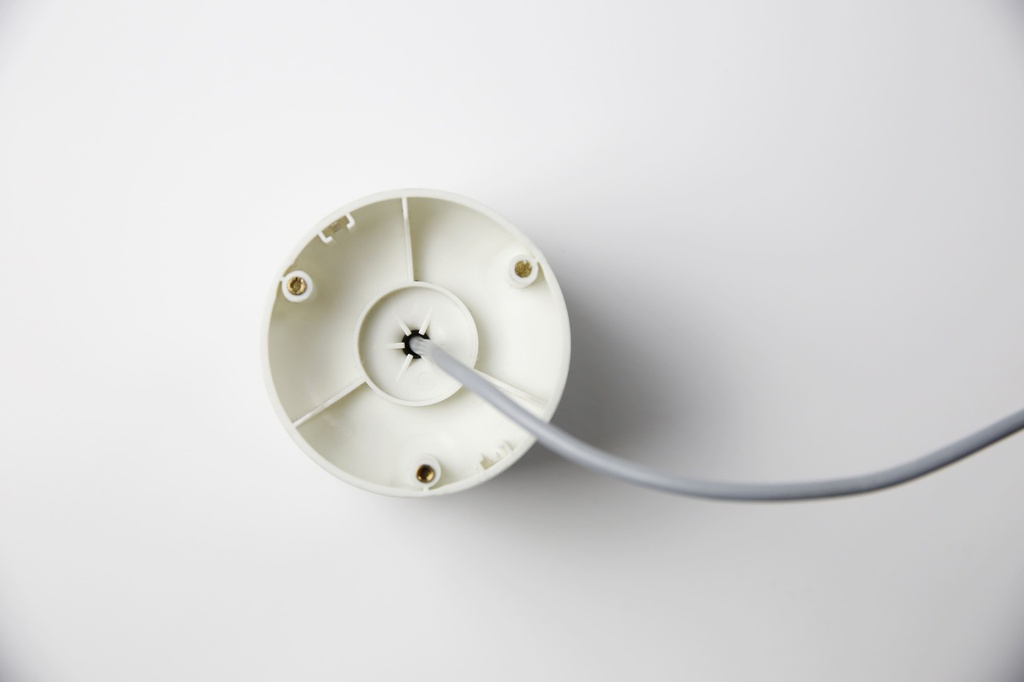

2xM3 lateral female tripod thread (UNC1/4''-20) , 3xM3 inferior lateral female tripod thread (UNC1/4''-20)

Data Output

RS485 (NMEA 0183) Poll / Stream
RS485 (MODBUS)
UART (NMEA 0183) Poll / Stream




Data Sheet
Instruction Manual

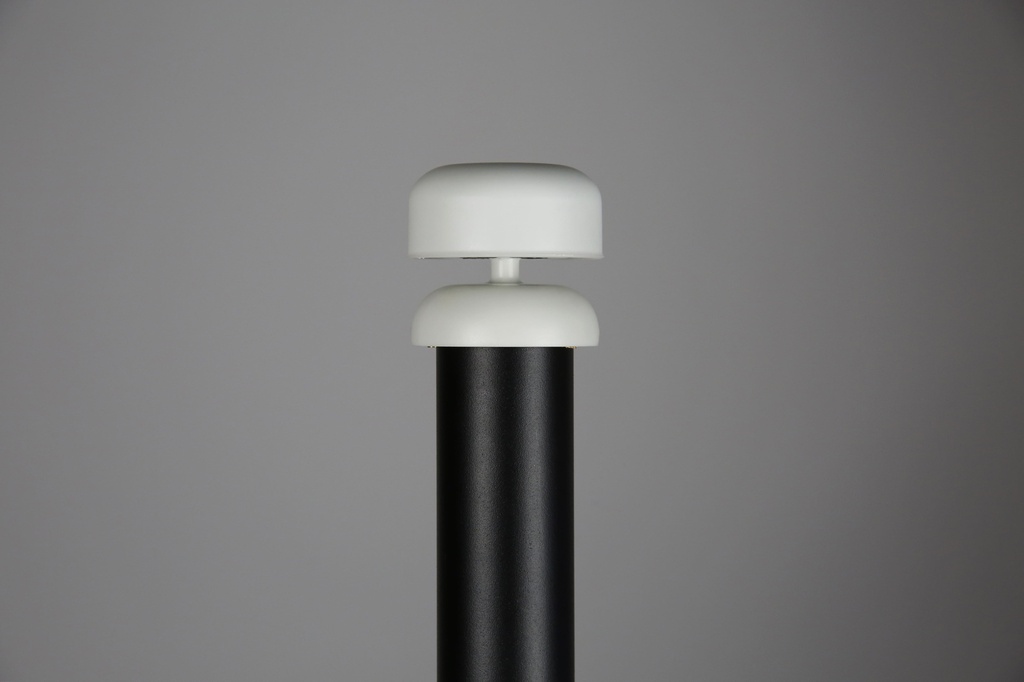

Adapter for Carbon and Aluminum Pole



Carbon Fiber Pole



Aluminum Pole











Specifications

Protocols UART/ I2C or RS485 (NMEA0183) / MODBUS or SDI12
Speed range 45m/s
​ No extra features
