Gateways and Range Extenders for NMEA 2000 / NMEA 0183
/ BLE / WIFI networks.

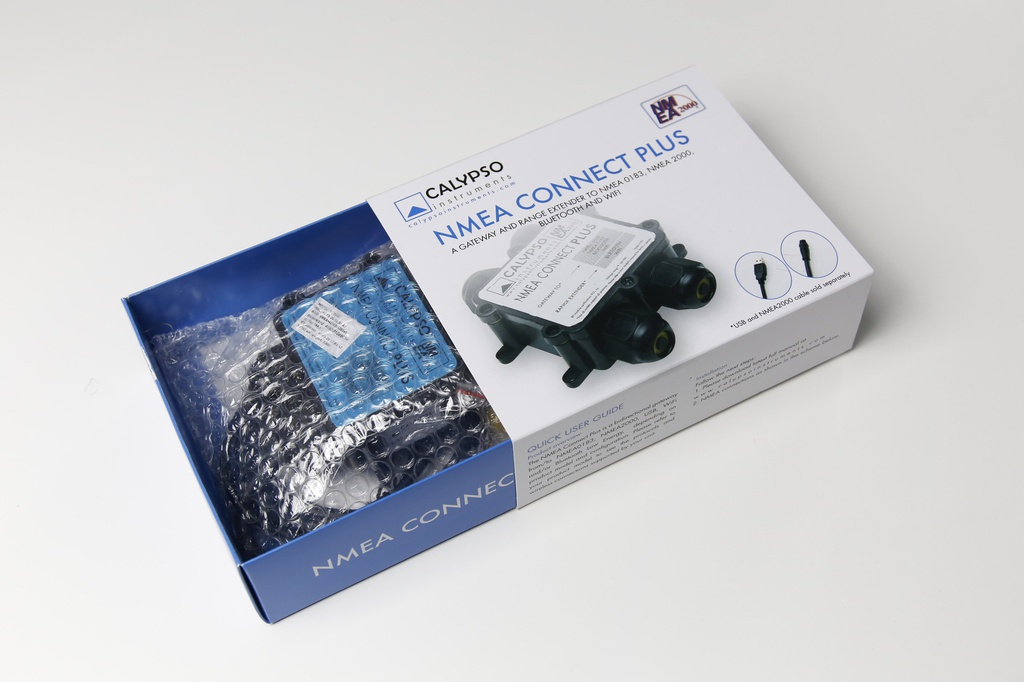

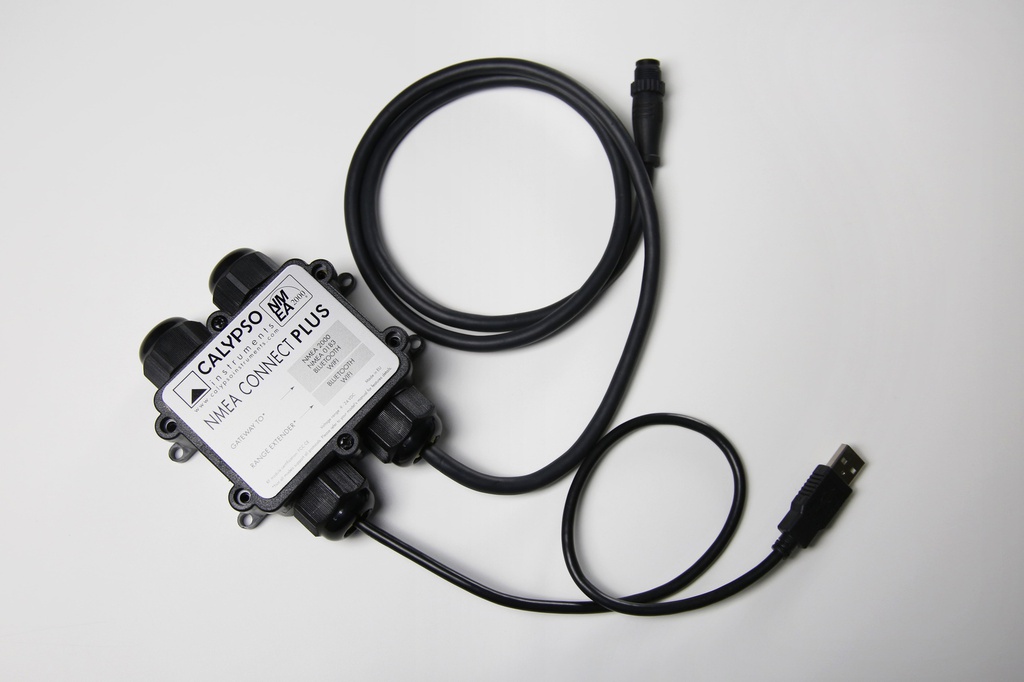

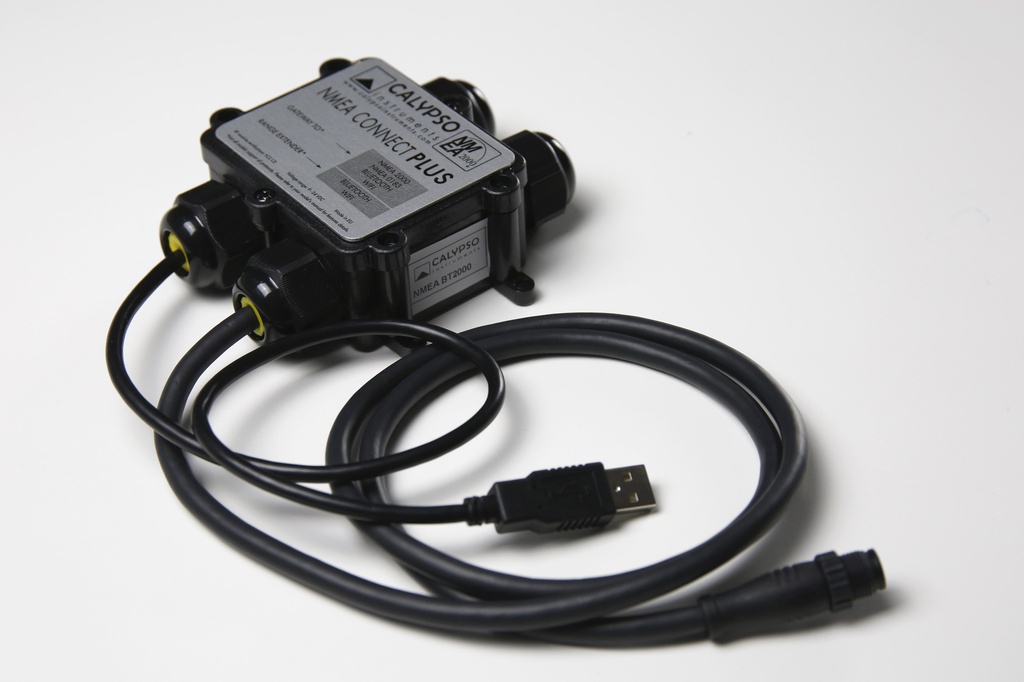

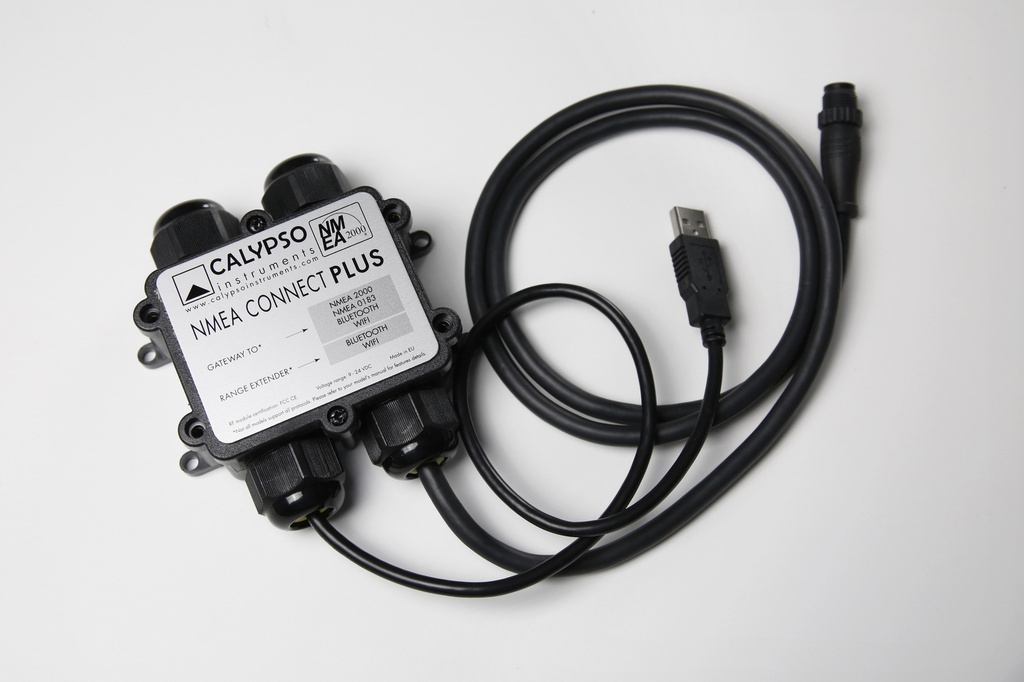

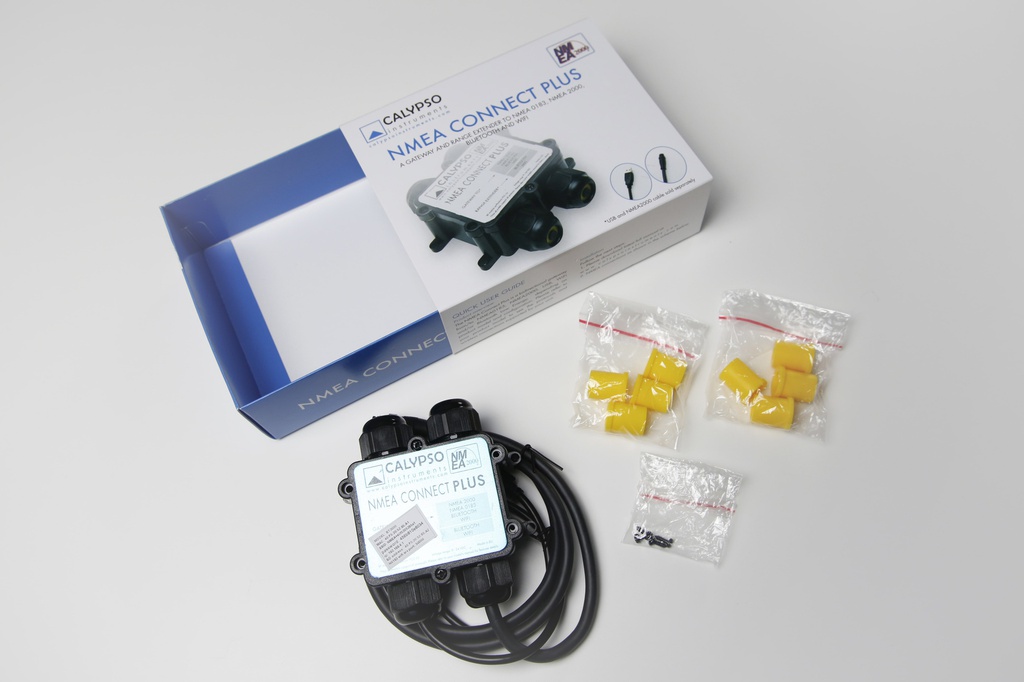

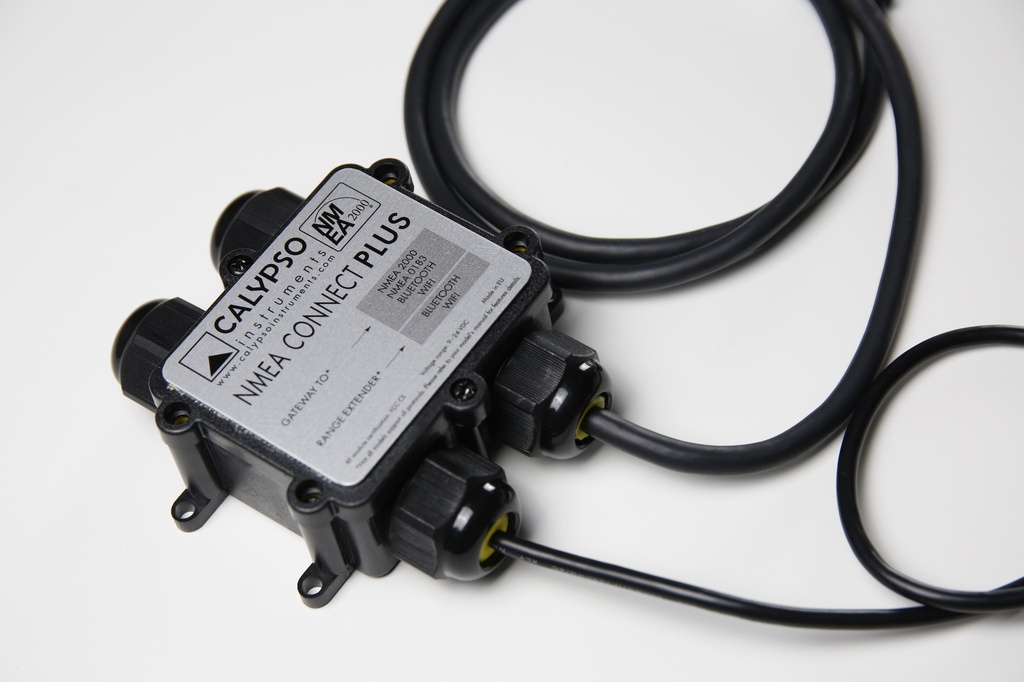

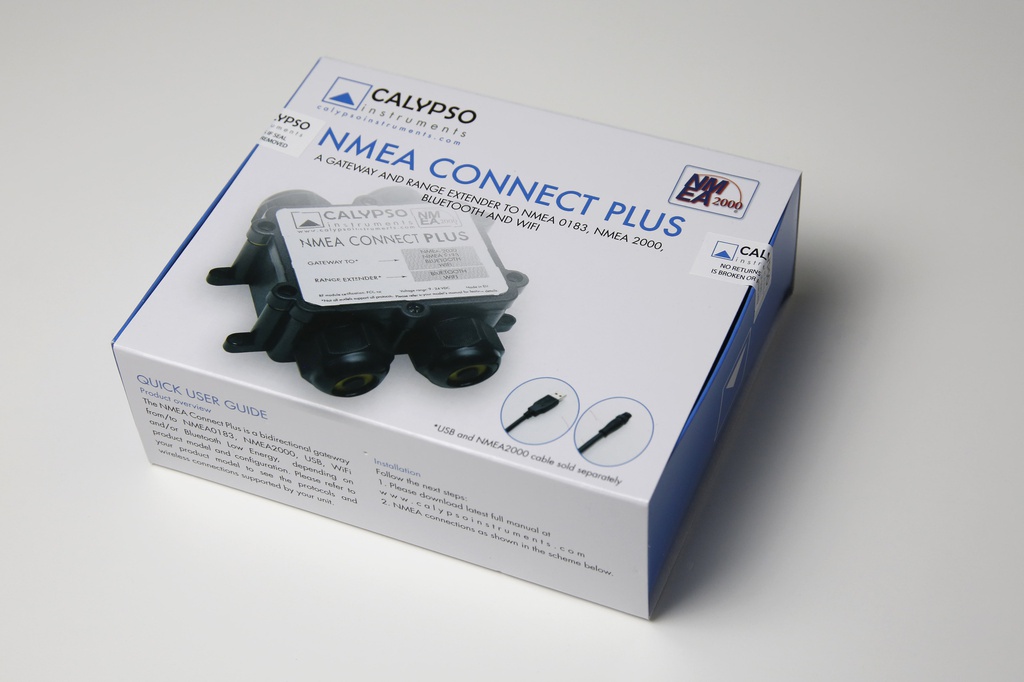

The NMEA Connect Plus connects any of our products to an NMEA 2000 or NMEA 0183 network. It also relays the signal as wifi and bluetooth, allowing easy connection with multiple apps and PC based software. It also allows several users to get wind data from the same wind meter via bluetooth.
Firmware upgrades to bring any model to the High End and to add the wifi extender capability are available upon request.
The NMEA Connect Plus has been certified for NMEA 2000.
The NMEA Connect Plus family comprises the following models :
NCP BT 0183 : Connects your Bluetooth ULTRASONIC PORTABLE wind meter data to NMEA 0183 network. Allows the connection of 2 Bluetooth devices at the same time.
NCP BT 2000 : Connects your Bluetooth ULTRASONIC PORTABLE wind meter data to NMEA 2000 network. Allows the connection of 2 Bluetooth devices at the same time.
NCP_ W2000 : Connects your Ultra-Low Power ULTRASONIC wind data to NMEA 2000 network. Allows the connection of 2 Bluetooth devices at the same time.
NCP_ HighEnd: Receives wind data from any ULTRASONIC wind meter within Calypso´s range of products. Converts NMEA 0183 wind sentences and/or Bluetooth signal into NMEA 0183 network and Bluetooth. It can also be used as range-extender using it as a Bluetooth-repeater.
Width : 107 mm (4.21 in.) Height : 35 mm (1.38 in.) Lenght : 115 mm (4.53 in.)
Weight : 100 grams (3.53 oz.)

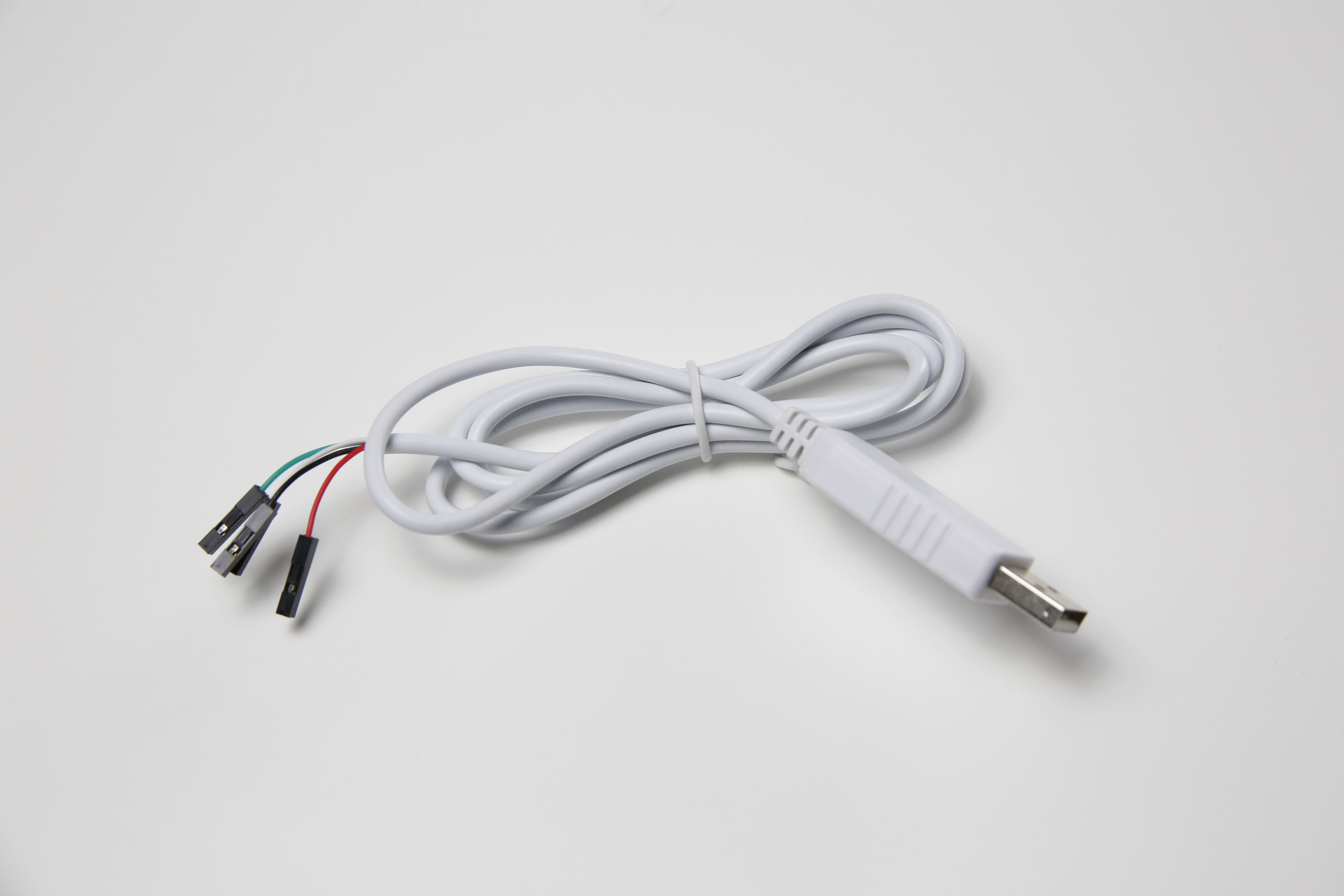

Upgradable via USB
CAN-BUS port (NMEA 2000) 2xRS-485 port (NMEA 0183) USB port ( for power and firmware upgrade)
NMEA0183 (RS485) NMEA2000 (CANBUS)
Ultrasonic Portable Range to NMEA 2000
Ultrasonic Portable Range to NMEA 0183
Ultrasonic Wired Range to NMEA 2000
Ultrasonic Wired Range to NMEA 0183
Use cases ( PC, Anemotracker App, B&G, Raymarine and Humminbird displays)
