Mounting Options for the Ultra Low Power- Ultrasonic wind meter

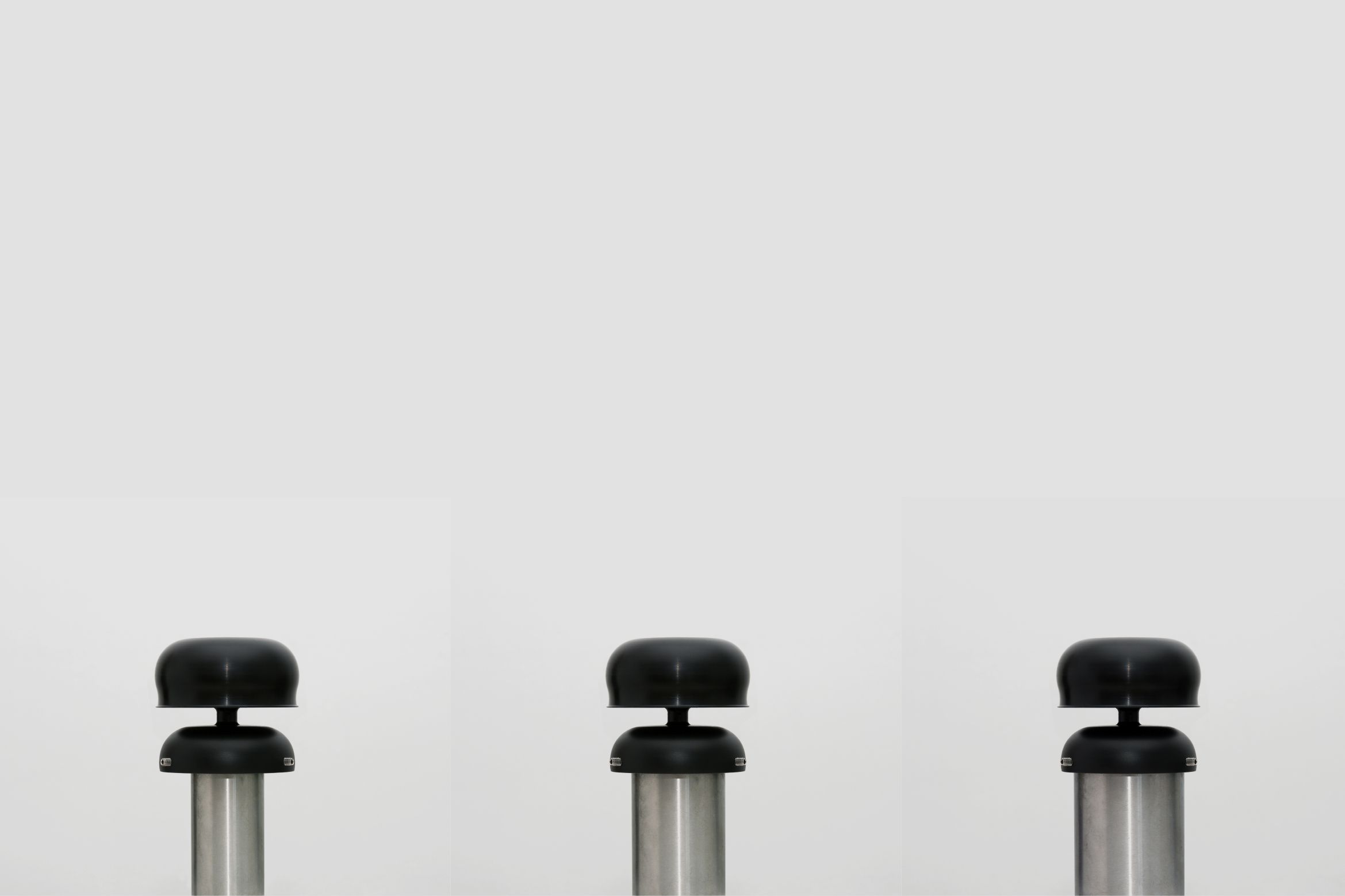

The Ultra Low Power-Ultrasonic wind meter can be mounted either on a flat surface or a pole mount.

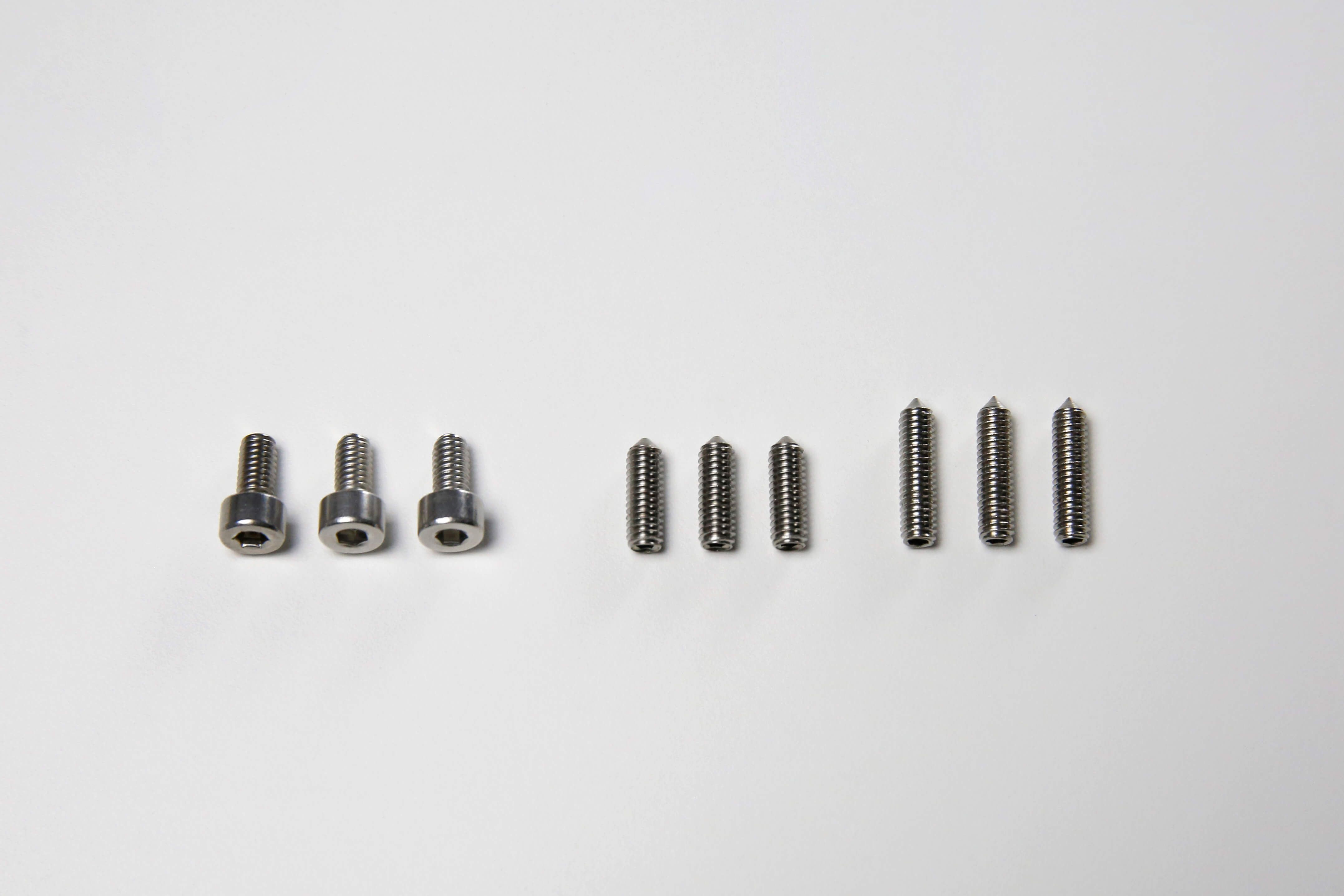

This wind meter comes with different screw sizes that will allow you to mount your Ultra Low Power-Ultrasonic in poles with different diameter thickness depending on your choice.




The adapter for Carbon Fiber and Aluminum poles will help you to mount your Ultra Low Power- Ultrasonic wind meter on the Carbon fiber or Aluminum Poles.

Place the nut on the disc to attach it to the pole. Screw the pole on, and attach the disc by using the three M4 screws provided. Use the 3 M4 A4 (marine grade) stainless steel screws provided with your wind meter to attach the disc to it.

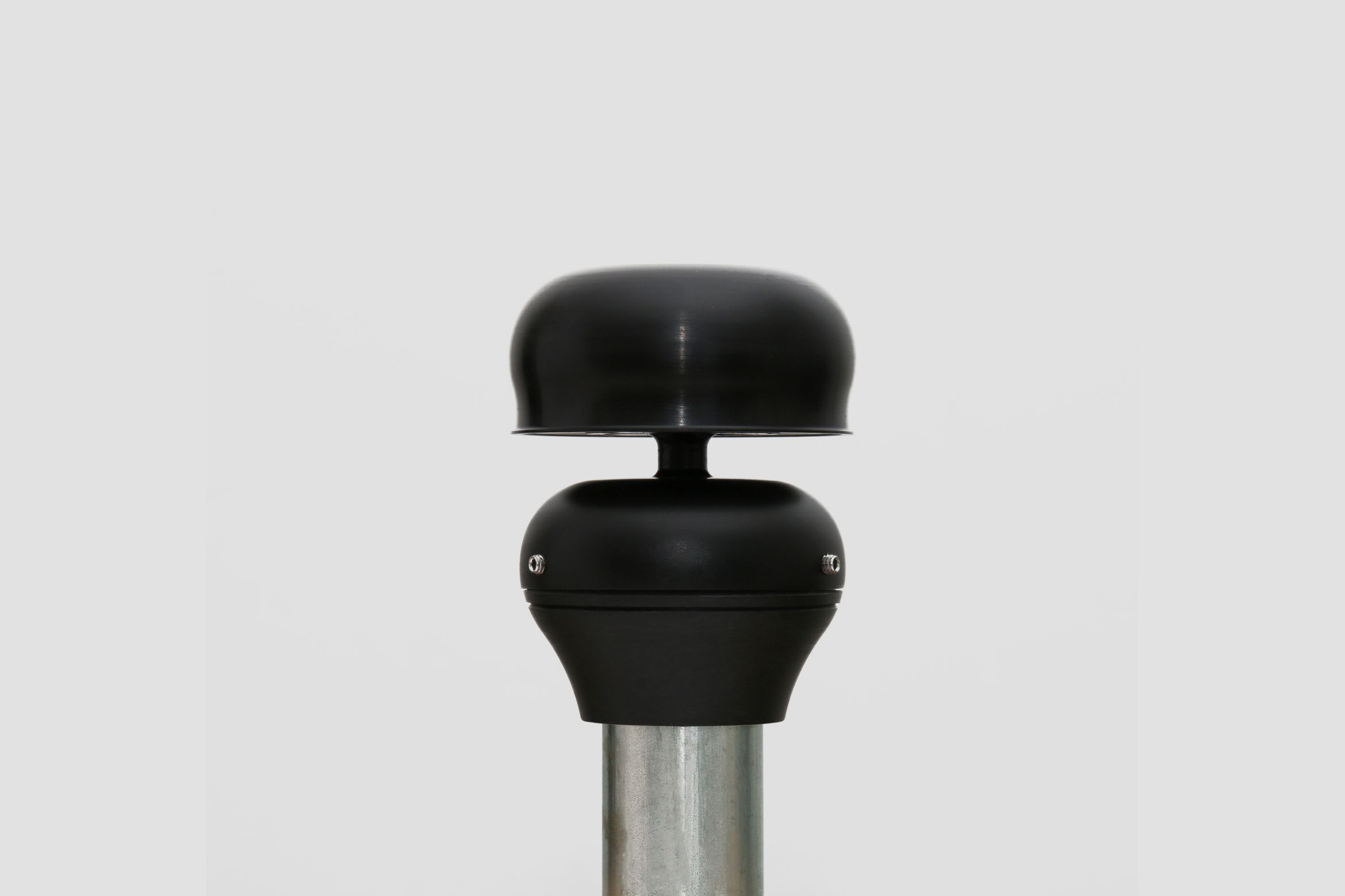

The adapter for pole 39 mm allows you to mount your wind meter on a 39 mm pole.

Insert the connection cable into the adapter. Align the wind meter and the adapter and adjust them with help from the screws. Last of all, place your wind meter on top of the pole.





For mounting your Ultra Low Power-Ultrasonic , insert the connection cable into the holes made on the surface. Align the wind meter and surface and adjust them with help from the screws . Last of all, place your wind meter on top of the pole.








.
