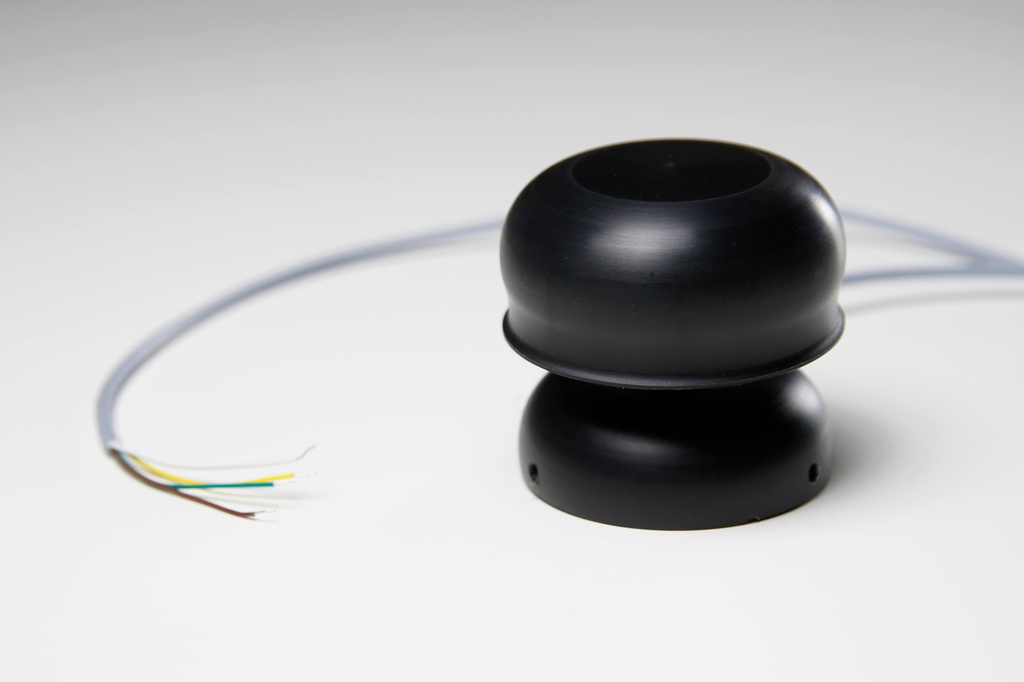

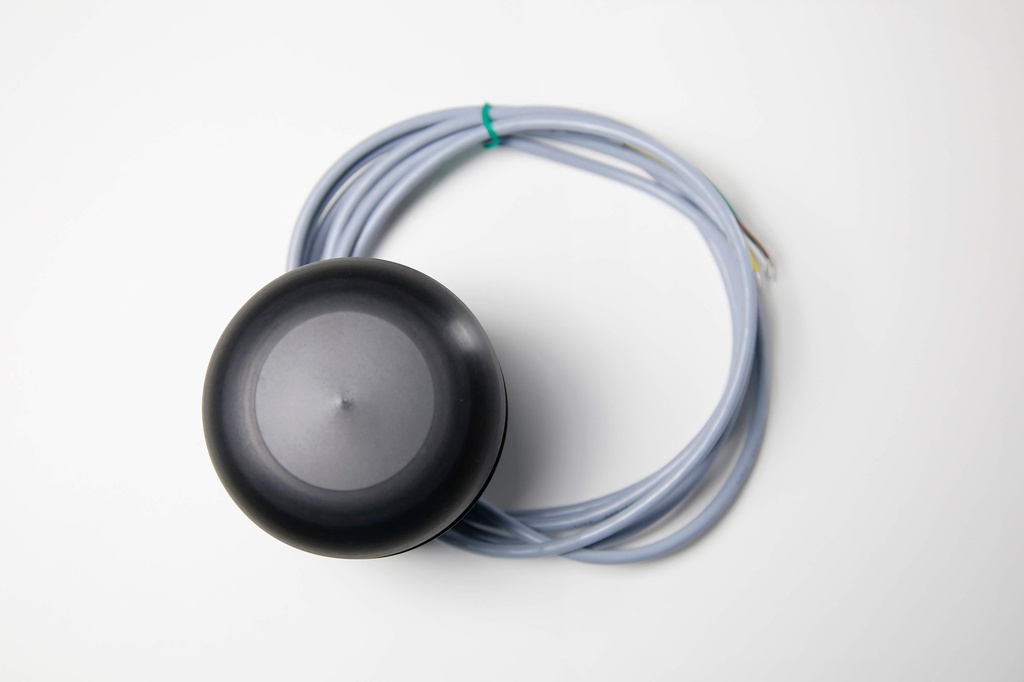

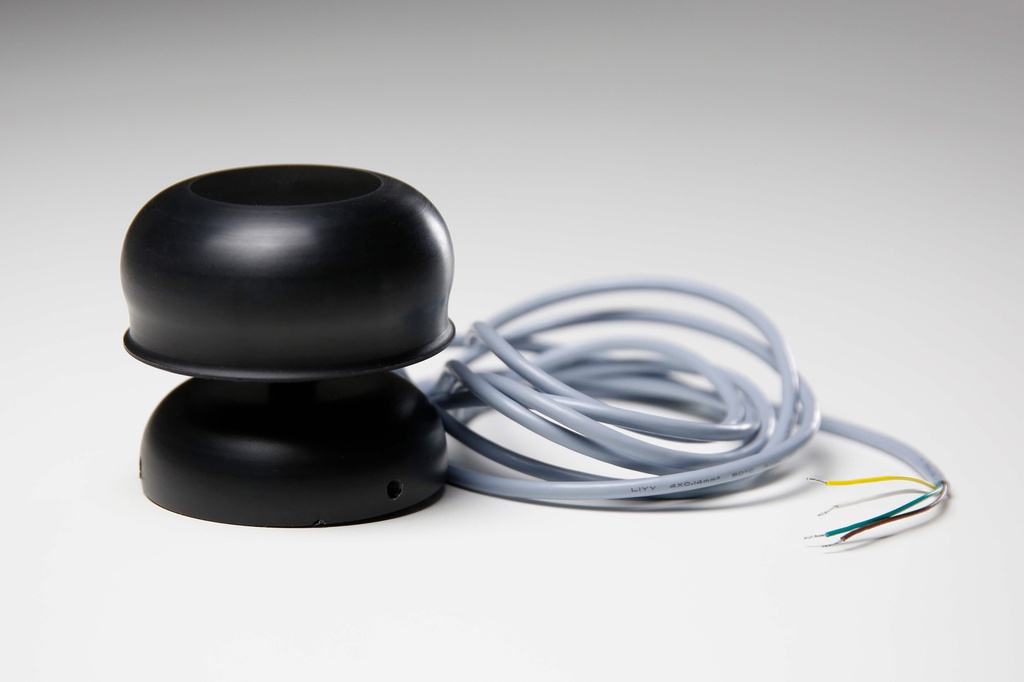

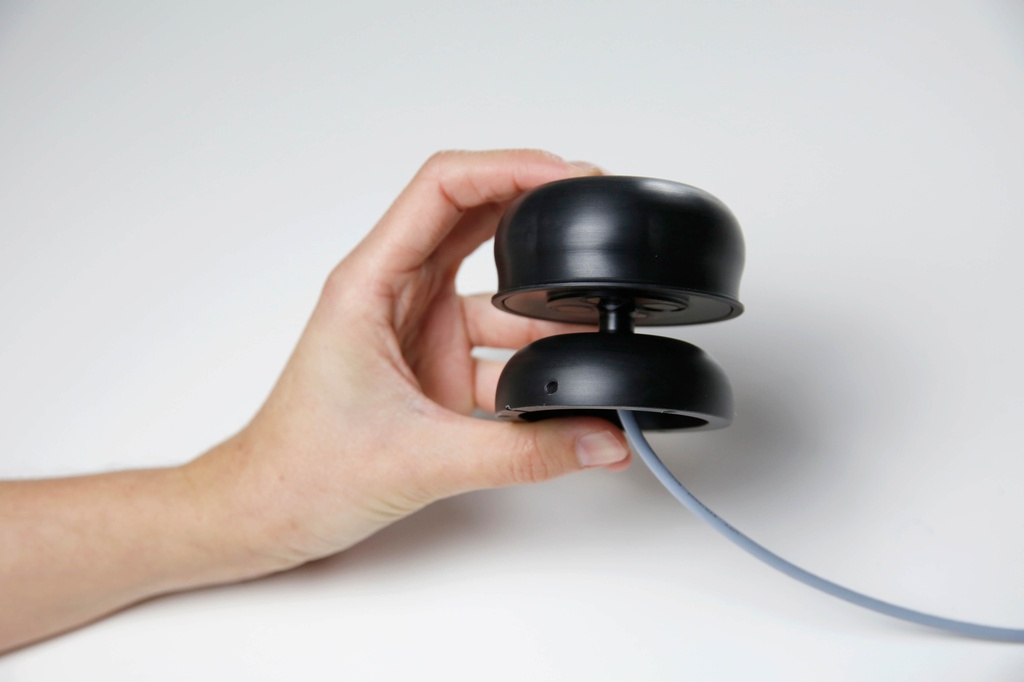

Ultra-Low-Power Ultrasonic wind meter (ULP STD)

  • Speed range
  • Protocols
  • Add extra features with the NMEA Connect Plus Gateway!

475.00 € 475.00 € 475.0 EUR

549.00 €

This combination does not exist.

Add to Cart Buy Now

The high performance ultrasonic wind meter for professional applications.

Add extra features with the NMEA Connect Plus Gateway!: No extra features

- 30-day money-back guarantee
- Free Shipping beyond 300€
- Delivery within 7-10 business days.

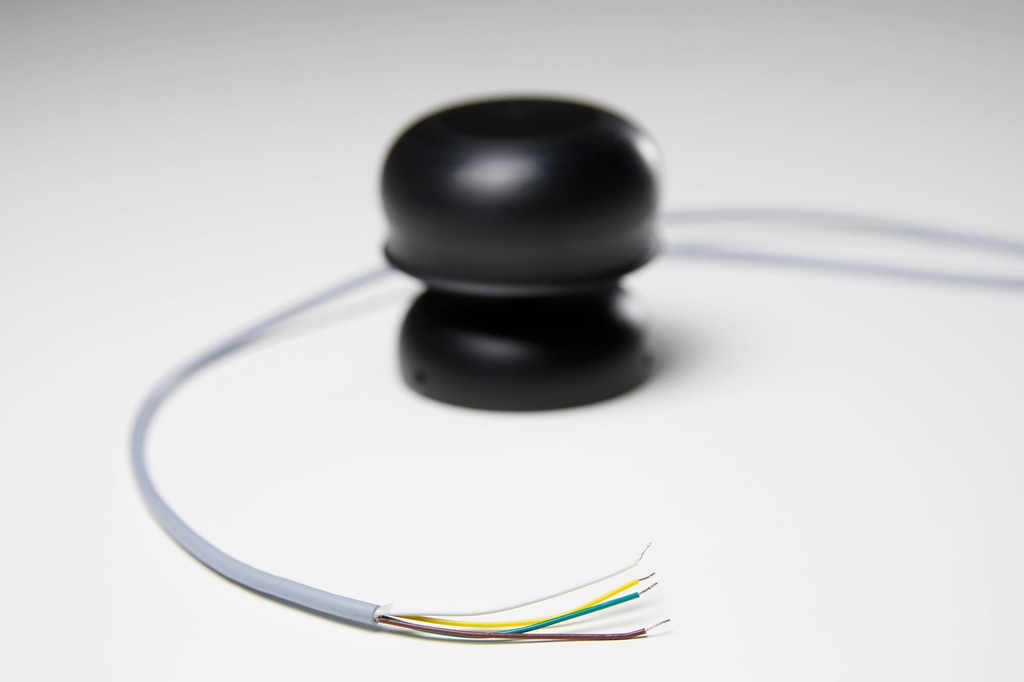

Ultra-Low-Power Ultrasonic wind meter.


Wind meter, a 45m/s IoT, Ultra-Low Power Ultrasonic Anemometer:


     Ultra-Low-Power (RS485 NMEA 0183: 0,25 mA @5V, 1Hz / MODBUS : 1 mA @5V, 1Hz)

     Ultra-Low-Power (UART): 0,15 mA @5V, 1Hz

    Small: 70x70 mm

     Light: 130-240gr



The ULP represents an important technology breakthrough condensing an extensive R+D investment that brings us to a new generation of ultrasonic wind meters.


  • Both shape and firmware have been enhanced for an improved rain performance, being this point key for static applications such as weather stations.

  • Mechanical design has been revamped making the unit more robust and dependable.

  • We feel very proud to release a unit that requires under 0,25mA @1Hz (RS485), and 0,15mA @1Hz (UART)

  (Further protocols under request).


NMEA 2000 output

The Ultra-Low-Power Ultrasonic wind meter can output an NMEA 2000 signal when using an NMEA Connect Plus NCP_W2000 model.

Certifications




Applications:


Agriculture: Precision Agriculture/ Spraying/ Fertilicers and Irrigation
Energy & Industry: Solar / Wind Power / Cranes /Elevators / Gas, oil & Industrial Plants

Infraestructures & construction: Tunnels, Roads & Bridges/ Buildings & Temporary Constructions

Marine: Fishing & Comercial/ Sailing, yacthing and watersports/ Marinas and Harbours

Scientific & Meteorology: Research/ Metereological monitoring/ Air Quality and environmental/ Smart Cities

Firefighing: Wildfire, urban firefighting

Ballistics: Long Range Shooting

Drones and aviation: Airports/ UAV

Outdoors

Add an NMEA Connect Plus :



  • NCP_ W2000 : Connects your Ultra-Low Power ULTRASONIC wind data to NMEA 2000 network. Allows the connection of 2 Bluetooth devices at the same time.




Material
Machined engineering plastic (black)


Dimensions
Diameter : 70 mm (2.76 in.)
Height : 65 mm (2.56 in.)
Weight : 210 grams (7.4 oz.)
Wind Speed
Range : 0.5-45 m/s (1.12 -100 mph) or 0.5-25 m/s (1.12 - 56 mph)
Accuracy : ±0.1 m/s at 10 m/s (0.22 mph at 22.40 mph)

Wind Direction
Range : 0-359º
Accuracy : ± 1

Wind Information

Aparent wind speed & direction


Sensors
Ultrasonic transducers (4x)

 Sample rate
0.1 Hz to 20 Hz (depending on the filter mode)

Power

3.3-18 DCV



Firmware
Upgradable. Configuration via USB


IP Code
IPX8 protection grade

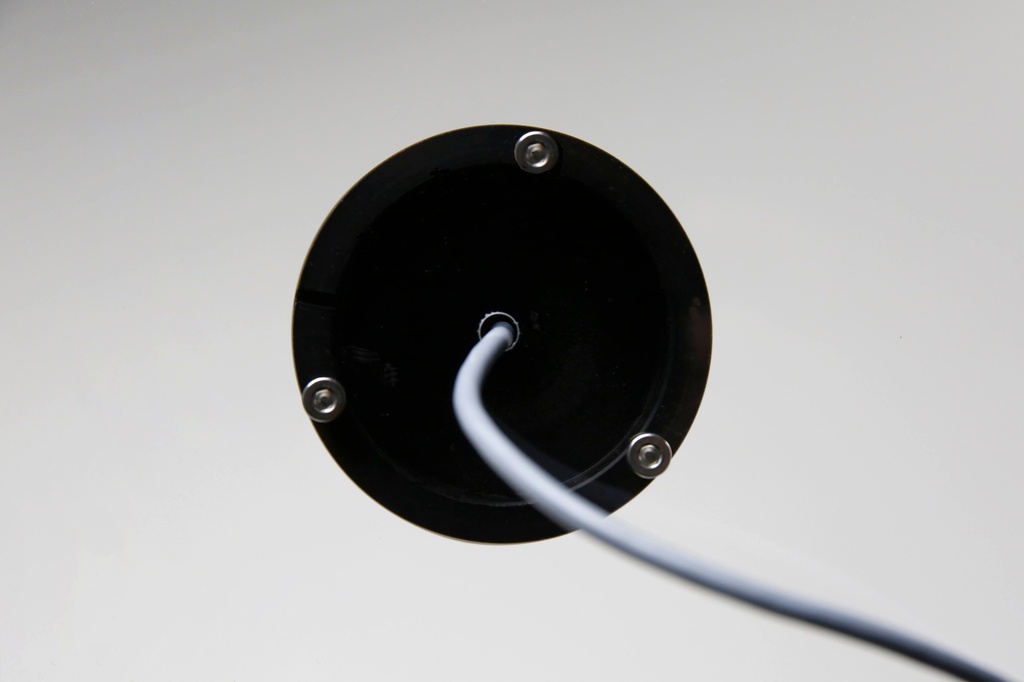

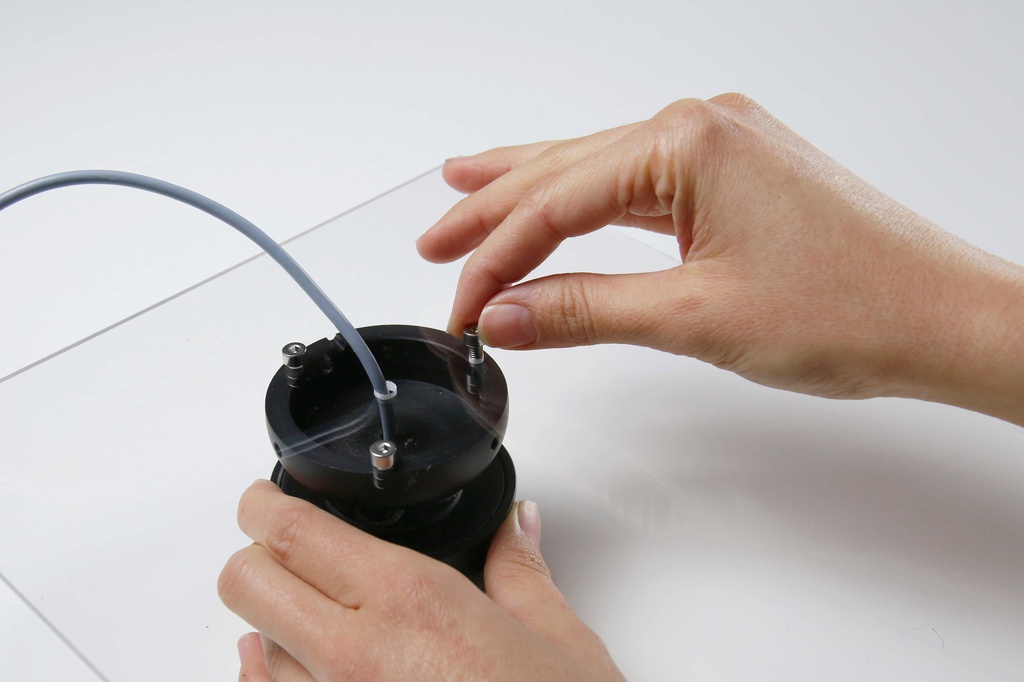

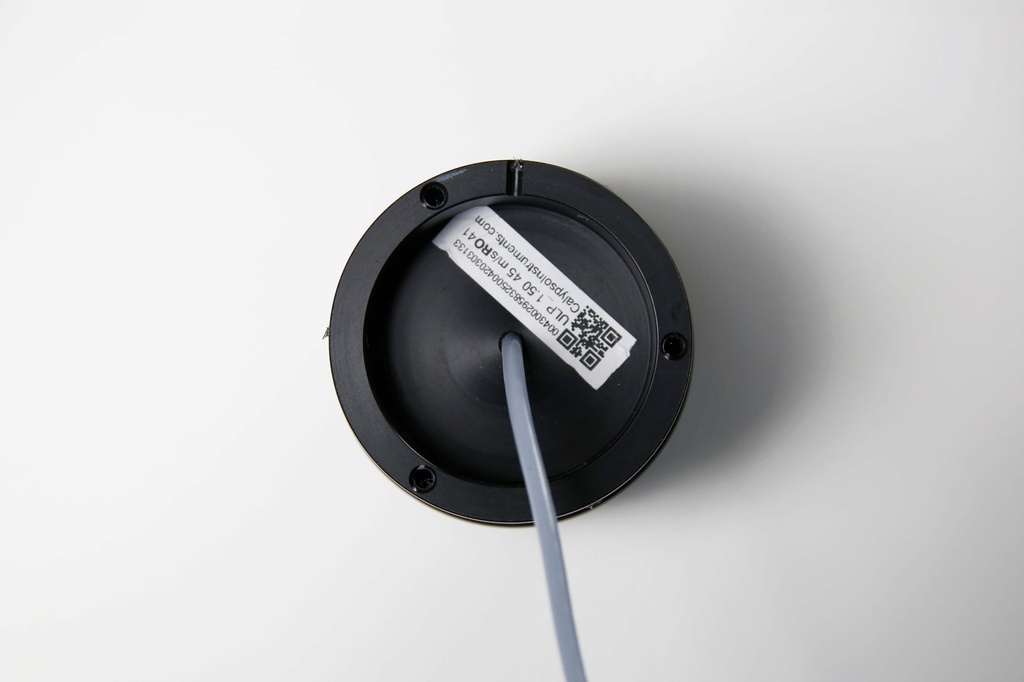

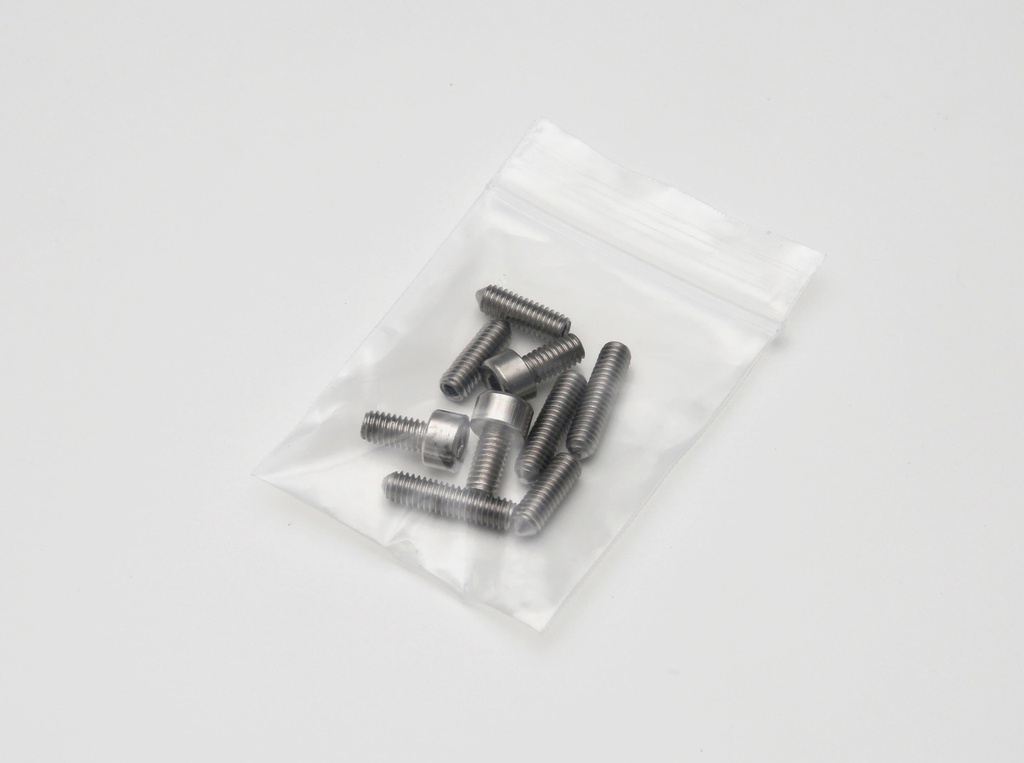

Mount

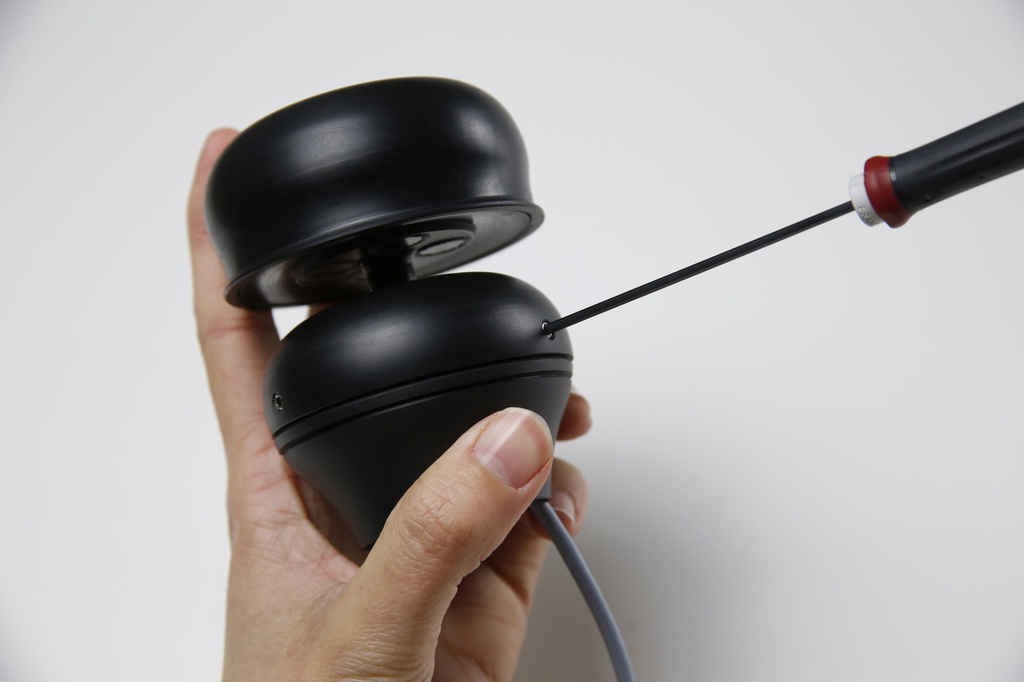

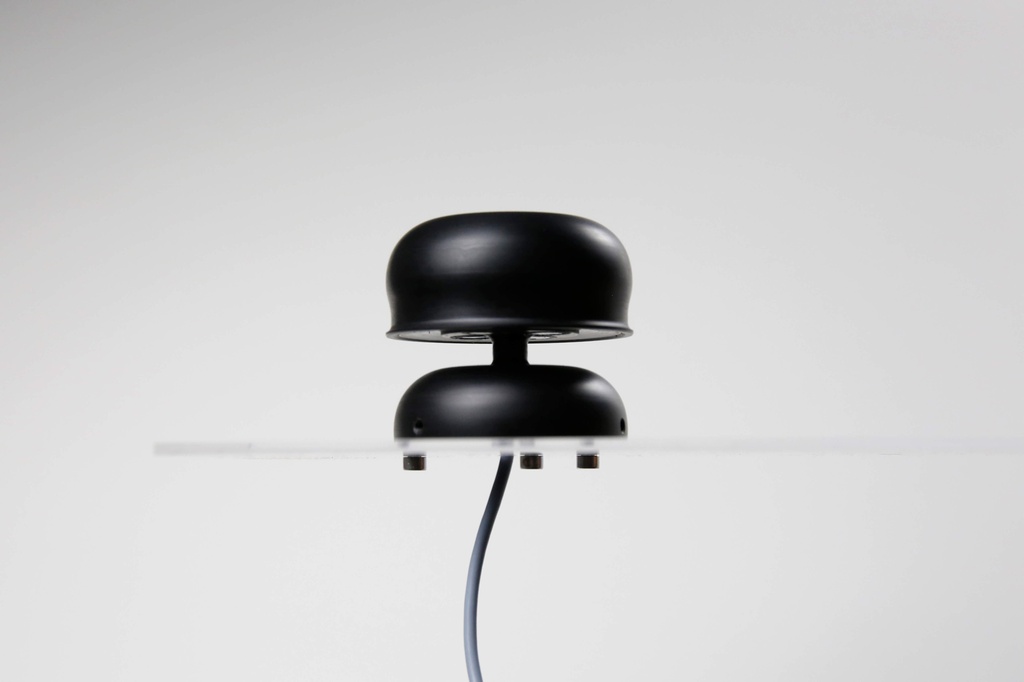

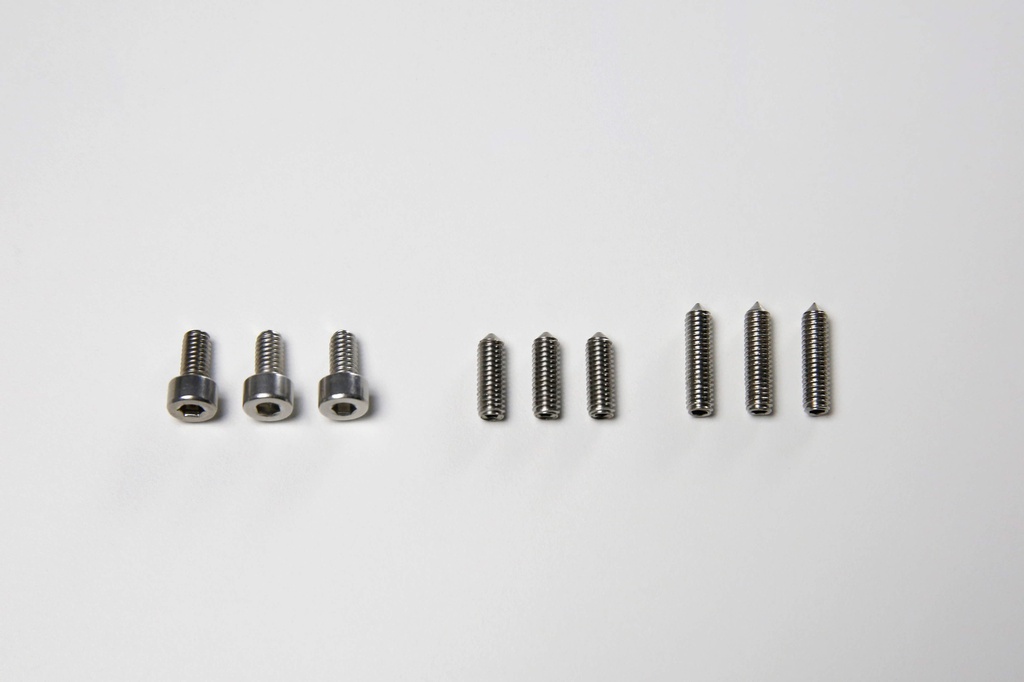

3xM4 lateral female thread screw, 3xM4 inferior female thread screw

Compatibility
NMEA Connect Plus

Data Output
RS485 ( NMEA 0183 Poll or Stream)
RS485 MODBUS (NMEA 0183 Poll or Stream)

UART (NMEA 0183) Poll / Stream
Analog output 4-20 mA
SDI-12




Datasheet
NMEA 2000 protocol Data Sheet

Instruction Manual


Instruction Manual (Chinese)




NMEA Connect PLUS Gateway

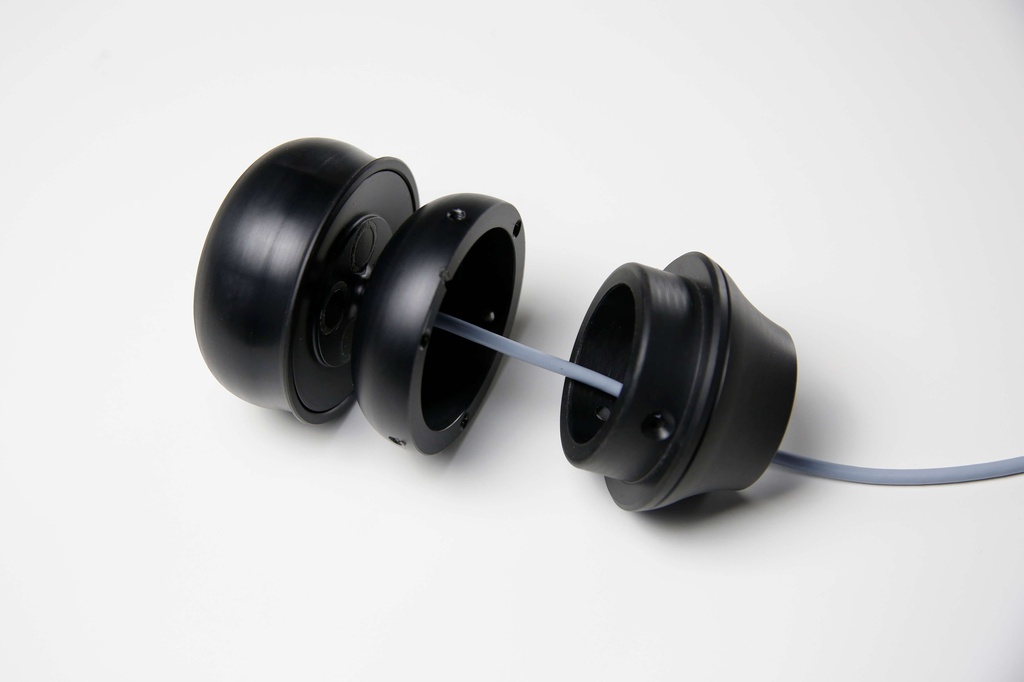

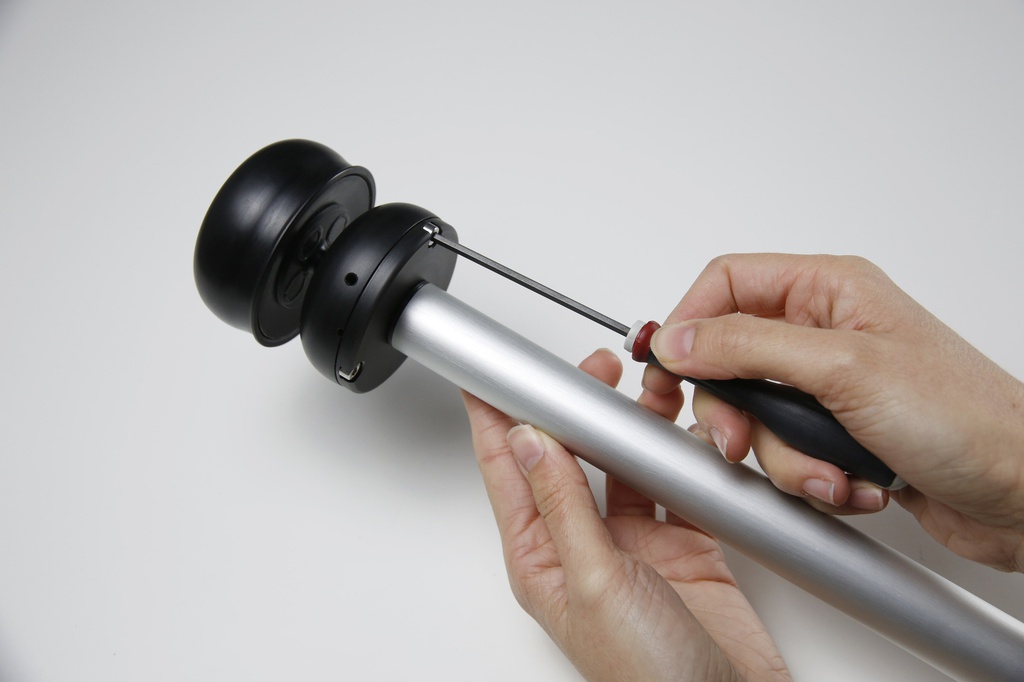

Adapter for Pole 39 mm



Adapter for Carbon and Aluminum Pole

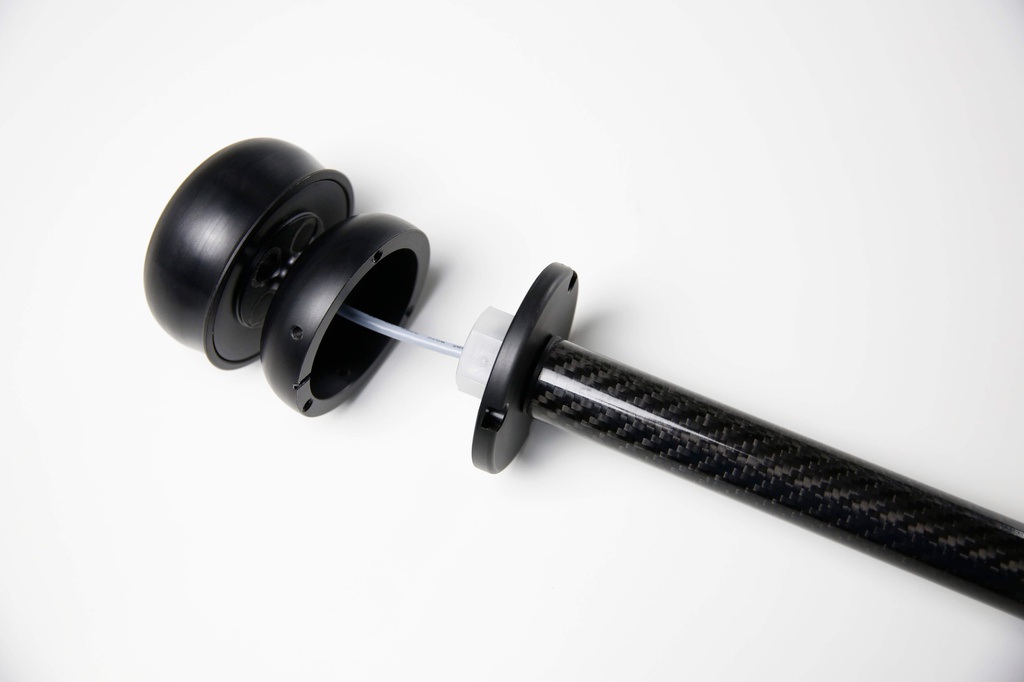

Carbon Fiber Pole

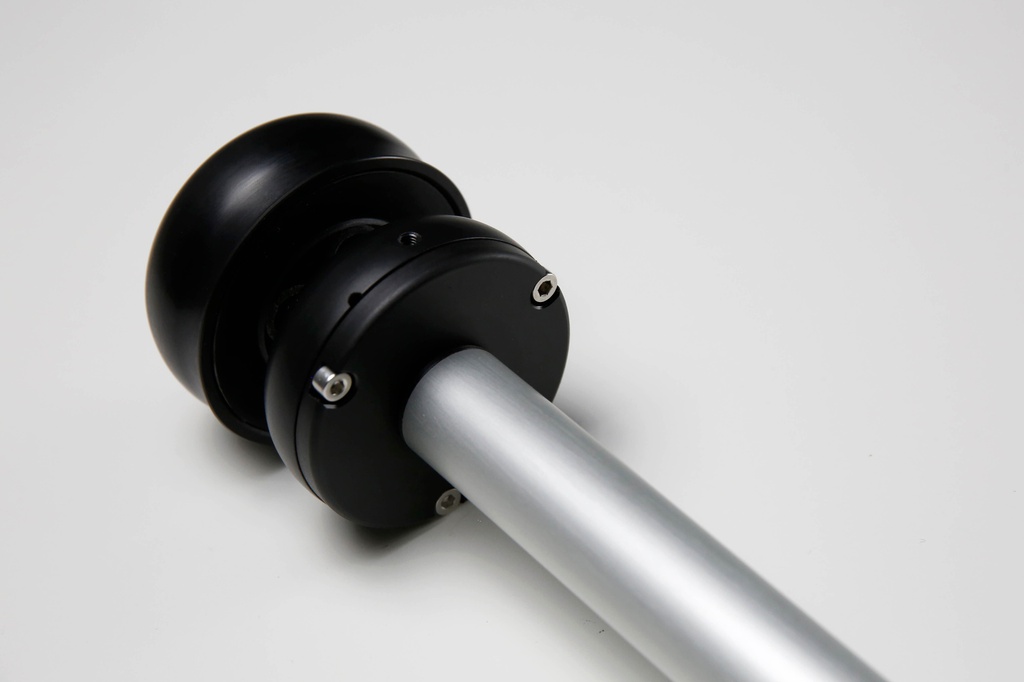

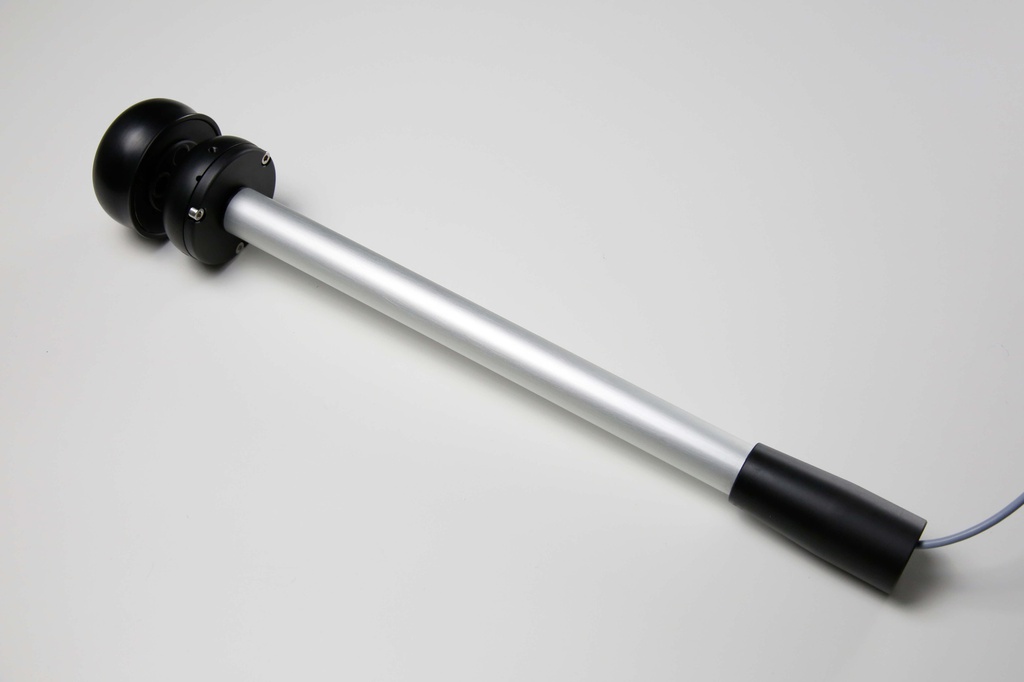

Aluminum Pole
