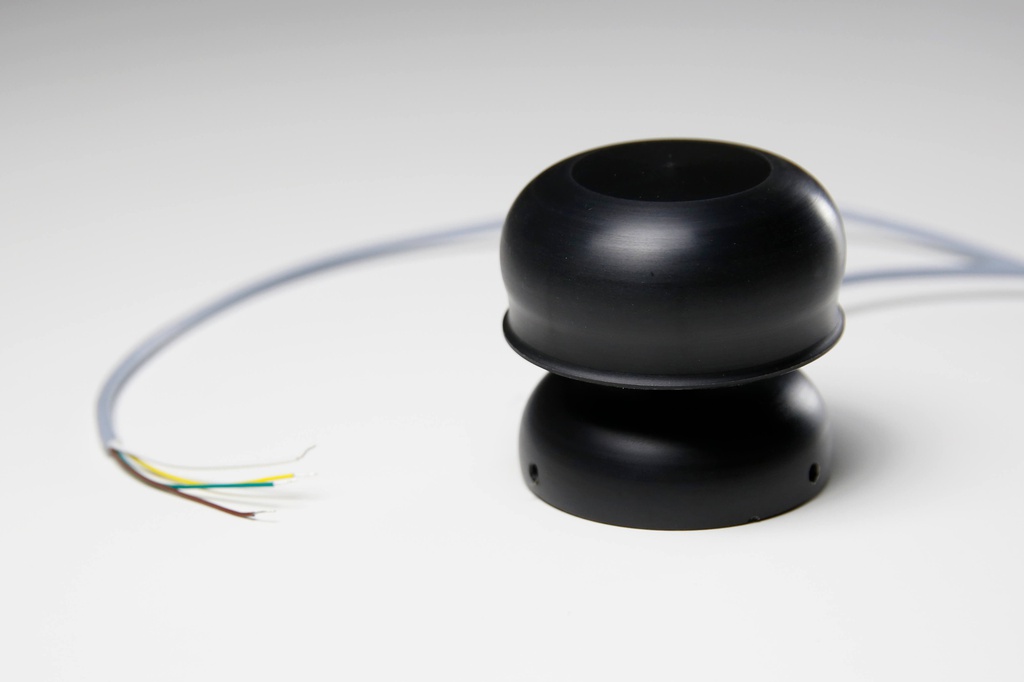

Ultra-Low-Power Ultrasonic wind meter.
Wind meter, a 45m/s IoT, Ultra-Low Power Ultrasonic Anemometer:
Ultra-Low-Power (RS485 NMEA 0183: 0,25 mA @5V, 1Hz / MODBUS : 1 mA @5V, 1Hz) Ultra-Low-Power (UART / I2C ): 0,15 mA @5V, 1Hz
Small: 70x70 mm
The ULP represents an important technology breakthrough condensing an extensive R+D investment that brings us to a new generation of ultrasonic wind meters.
Both shape and firmware have been enhanced for an improved rain performance, being this point key for static applications such as weather stations.
Mechanical design has been revamped making the unit more robust and dependable.
We feel very proud to release a unit that requires under 0,25mA @1Hz (RS485), and 0,15mA @1Hz (UART)
(Further protocols under request).
NMEA 2000 output
The Ultra-Low-Power Ultrasonic wind meter can output an NMEA 2000 signal when using an NMEA Connect Plus NCP_W2000 model.
Agriculture: Precision Agriculture/ Spraying/ Fertilicers and Irrigation
Energy & Industry : Solar / Wind Power / Cranes /Elevators / Gas, oil & Industrial Plants
Infraestructures & construction: Tunnels, Roads & Bridges/ Buildings & Temporary Constructions
Marine: Fishing & Comercial/ Sailing, yacthing and watersports/ Marinas and Harbours
Scientific & Meteorology: Research/ Metereological monitoring/ Air Quality and environmental/ Smart Cities
Firefighing: Wildfire, urban firefighting
Ballistics: Long Range Shooting
Drones and aviation: Airports/ UAV
Add an NMEA Connect Plus :
NCP_ HighEnd : Receives wind data from any ULTRASONIC wind meter within Calypso´s range of products. Converts NMEA 0183 wind sentences and/or Bluetooth signal into NMEA 0183 network and Bluetooth. It can also be used as range-extender using it as a Bluetooth-repeater.
NCP_ W2000 : Connects your Ultra-Low Power ULTRASONIC wind data to NMEA 2000 network. Allows the connection of 2 Bluetooth devices at the same time.
