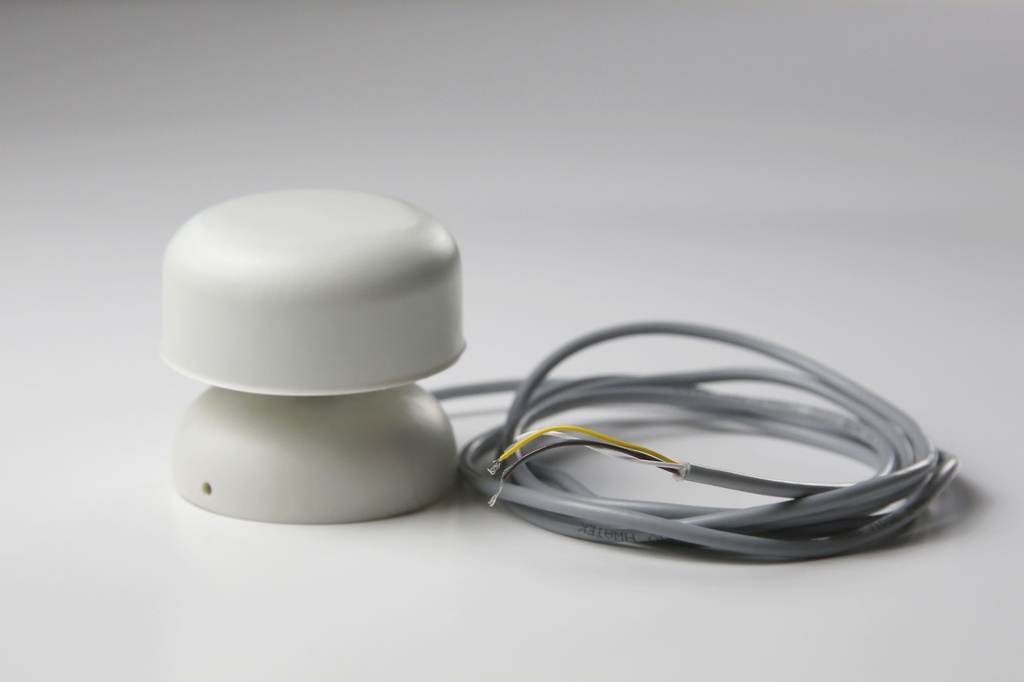

Ultra-Low-Power Ultrasonic wind meter PRO (ULP PRO).
Wind meter, a 45m/s IoT, Ultra-Low-Power Ultrasonic wind meter PRO (ULP PRO).
Ultra-Low-Power (RS485 NMEA 0183: 0,25 mA @5V, 1Hz / MODBUS : 1 mA @5V, 1Hz)
Small: 68 mm (2.68 in.) diameter.
Light: 200 grams (7.05 oz.)
The ULP PRO represents an important technology breakthrough condensing an extensive R+D investment that brings us to a new generation of ultrasonic wind meters.
Both shape and firmware have been enhanced for an improved rain performance, being this point key for static applications such as weather stations.
Mechanical design has been revamped making the unit more robust and dependable.
We feel very proud to release a unit that requires under 0,25mA @1Hz (RS485), and 0,15mA @1Hz (UART).
(Further protocols under request).
485 MODBUS
The 485 Modbus product can provide 1-minute, 5-minute, and 10-minute averages, as well as the maximum gust recorded.
NMEA 2000 output
The Ultra Low Power- Ultrasonic wind meter PRO wind meter can output an NMEA 2000 signal when using an NMEA Connect Plus NCP_W2000 model.
Applications:
Agriculture: Precision Agriculture/ Spraying/ Fertilicers and Irrigation
Energy & Industry : Solar / Wind Power / Cranes /Elevators / Gas, oil & Industrial Plants
Infraestructures & construction: Tunnels, Roads & Bridges/ Buildings & Temporary Constructions
Marine: Fishing & Comercial/ Sailing, yacthing and watersports/ Marinas and Harbours
Scientific & Meteorology: Research/ Metereological monitoring/ Air Quality and environmental/ Smart Cities
Add an NMEA Connect Plus :
NCP_ W2000 : Connects your Ultra-Low Power ULTRASONIC wind meter PRO wind data to NMEA 2000 network. Allows the connection of 2 Bluetooth devices at the same time.
The package contains the following:
One ULP Pro Wind Instrument plus 2 meters (6.5 ft) of cable for connection
Serial number reference on the side of the packaging.
A quick user guide on the back of the packaging and some more useful information for the customer.
M3 headless screw (x7)
Internal Reference Codes:
The SKU/CMI product number for the ULP Pro 45m/s Wind Meter with RS485 (NMEA0183) / MODBUS protocol is CMI1019.
The SKU/CMI product number for the ULP Pro 45m/s Wind Meter with UART/12c protocol is CMI1032.
