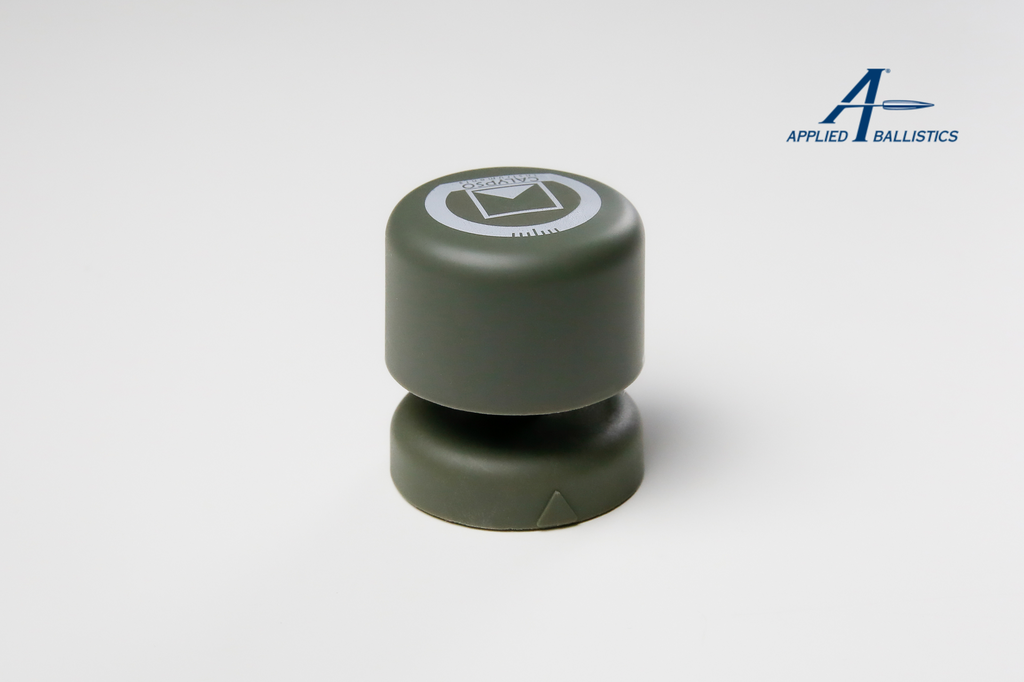

Ultrasonic Portable Mini AB

A miniature, Bluetooth, Battery powered, ultrasonic anemometer and wind vane.

Built with ULTRASONIC sensors, with no moving parts to make it robust and dependable, the Ultrasonic Portable Mini AB is a wind meter that measures both speed and direction, allowing data logging via a free app.

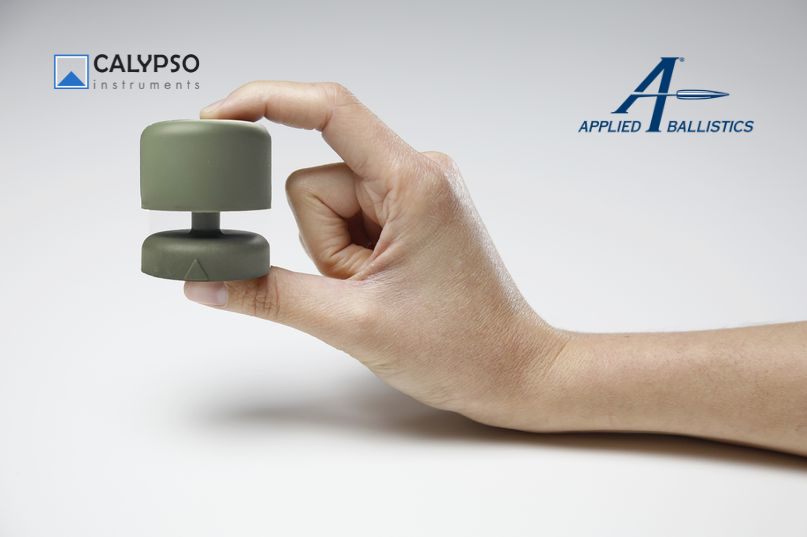

With just 43 mm diameter the Ultrasonic Portable MINI AB is a fully handheld, complete wind instrument.

It's size makes it an ideal stand-alone wind meter of great value on a wide range of industries and applications.

Applied Ballistics Compatible

It's Applied Ballistics compatible, ensuring that you can connect it to any of your Applied Ballistics Devices. This will allow all of the Applied Ballistics users to connect this wind meter to their device and get accurate wind speed and direction.

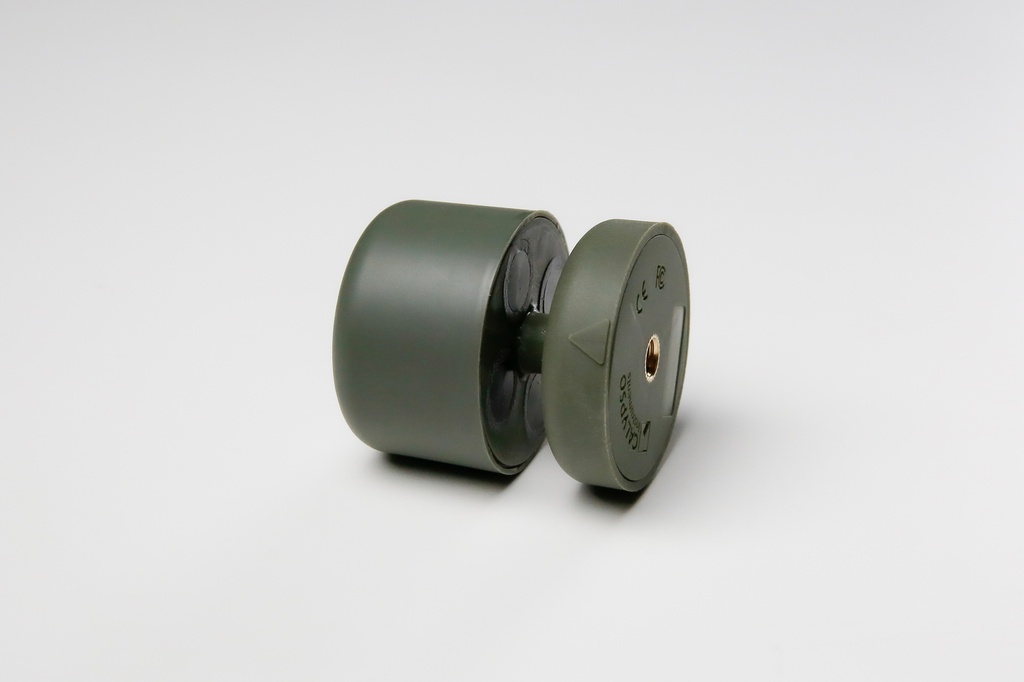

Simple mount

The Ultrasonic portable MINI AB has a female thread (1/4") perfect to be mounted on any tripod.

For those who want to see/read data while using Anemotracker App, the Phone Mount is the solution. A tiny accessory to put in the headphones hole there is in any Android phone.

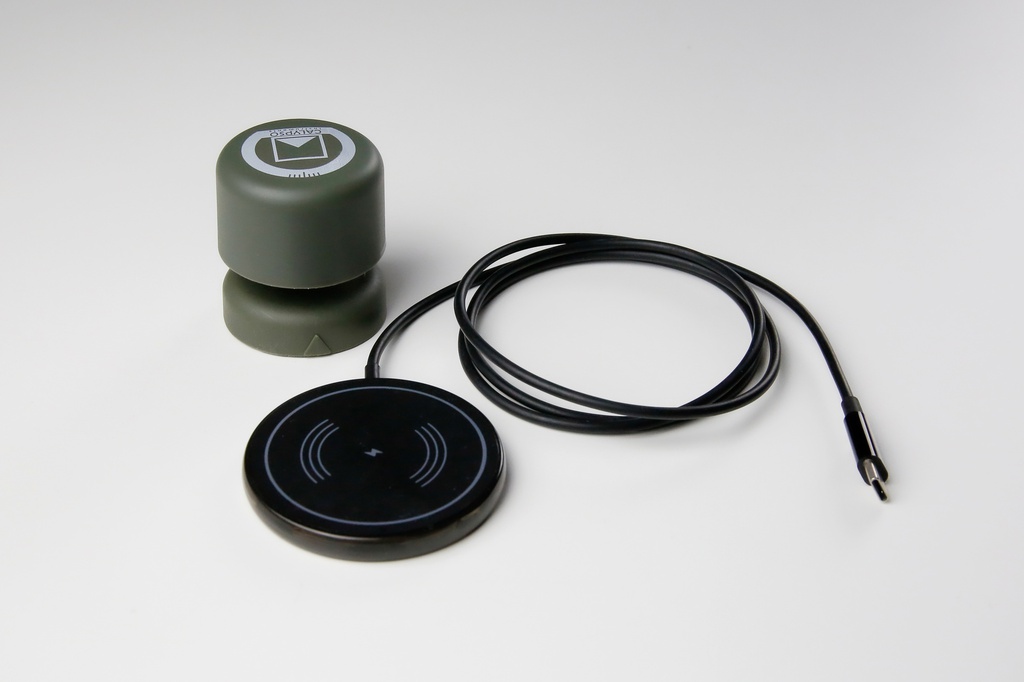

Wireless and Battery Powered

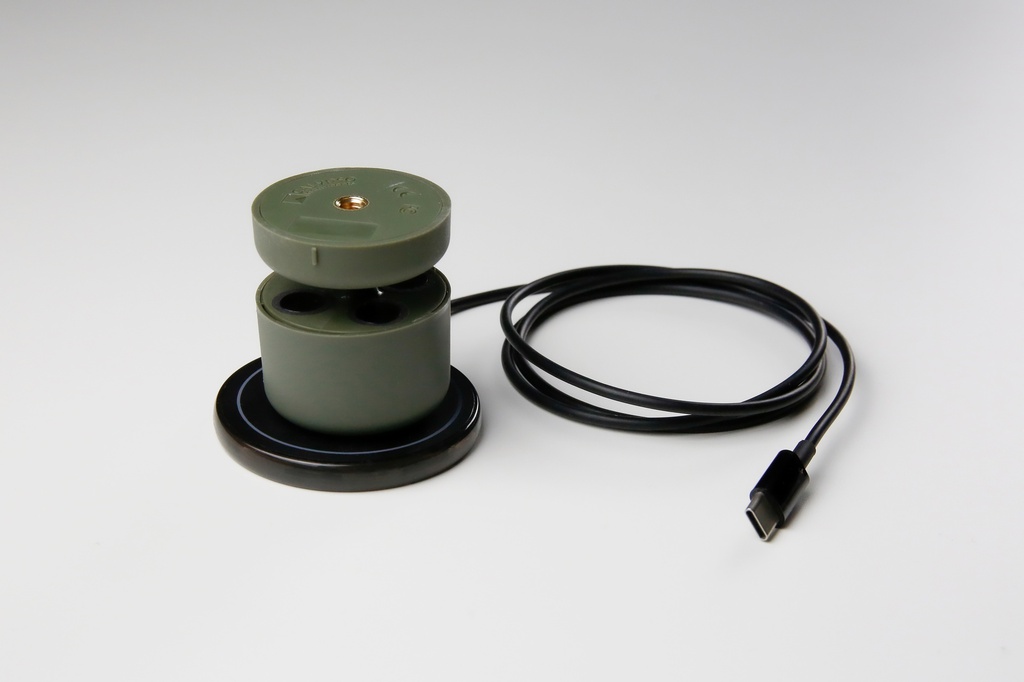

Wireless Charging QI- thanks to its Bluetooth connection, the Ultrasonic Portable Mini AB can be recharged on a wireless charged pad connected via USB to the power.

Special mention at the Dame Design Awards 2021

The Dame Design Awards recognize the best designed products at the Metstrade Show. Its unique relevance in the global marine marketplace emphasizes innovation and environmental impact among others.

Certifications

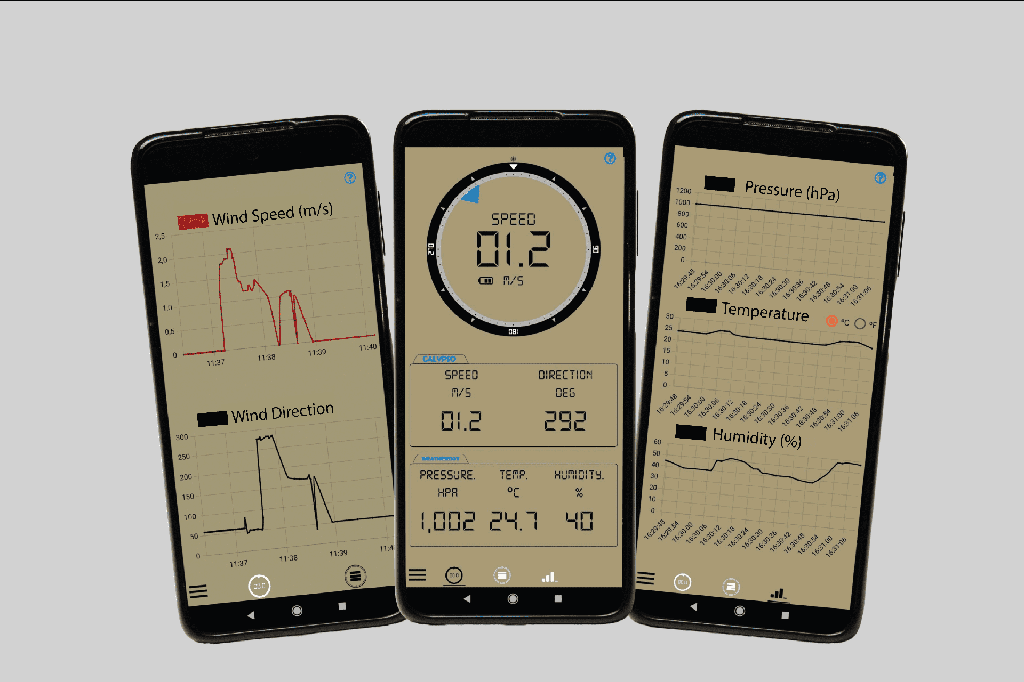

Get Anemotracker app for free!

Despite  the multiple apps available, we do provide a free app: Anemotracker. It will allow you to get wind speed and direction from your Ultrasonic Portable Mini AB. You can also save your wind meter data when tracking.

It includes 4 different modes : Marine, Golf, Meteo and Ballistics.

It will provide you with :

• Apparent wind speed and direction.

• Real wind speed and direction (if used on a vehicle or boat).

• Tracking of your wind data and exportation via excel or Google Earth.

• Available upgrade to the latest firmware version from the App-This new add-on will let the user to upgrade the Ultrasonic Portable to  the latest firmware version from Anemotracker app.

• Wind direction adjustable damping.

• Velocity Made Good calculations.

•  New derived data: stylish graphs with Means and deviations.

• Configuration from the units of measure: m/s, km/h, Kt.

•  Threshold alarm, direction offset, map mode, etc...

 Download it for IOS

 Download it for Android

 Download it for Garmin Connect IQ

Internal Reference Code:

The SKU/CMI product number for the Mini AB Portable Wind Meter is CMI1061.

Material

Injected molded (green)

Dimensions

Diameter : 43 mm (1.69 in.)
Height : 47 mm (1.85 in.)
Weight : 78 grams (2.75 oz.)

Wind Speed

Range : 0.5-25 m/s (1.12 - 56 mph) or 0.5 - 45 m/s (1.12 - 100 mph)
Accuracy : ±0.3 m/s at 10 m/s ( 0.67 mph at 22.40 mph)

Wind Direction

Range : 0-359º
Accuracy : ± 1

Wind Information

Aparent and real wind speed & direction via App

Sensors

Ultrasonic transducers ( 4x)

 Sample rate

1 Hz

Power

Battery powered (Wireless charging QI)

Battery runtime

150 hours of active use

Data Output

Bluetooth 5.1

Bluetooth Range

up to 30 m ( 98 ft.)

Firmware

Upgradable via Bluetooth

IP Code

IPX8 protection grade

Mount

Tripod mount - female thread screw

Compatibility

Android & IOS devices, tablets, Garmin watches

Data Output

Bluetooth

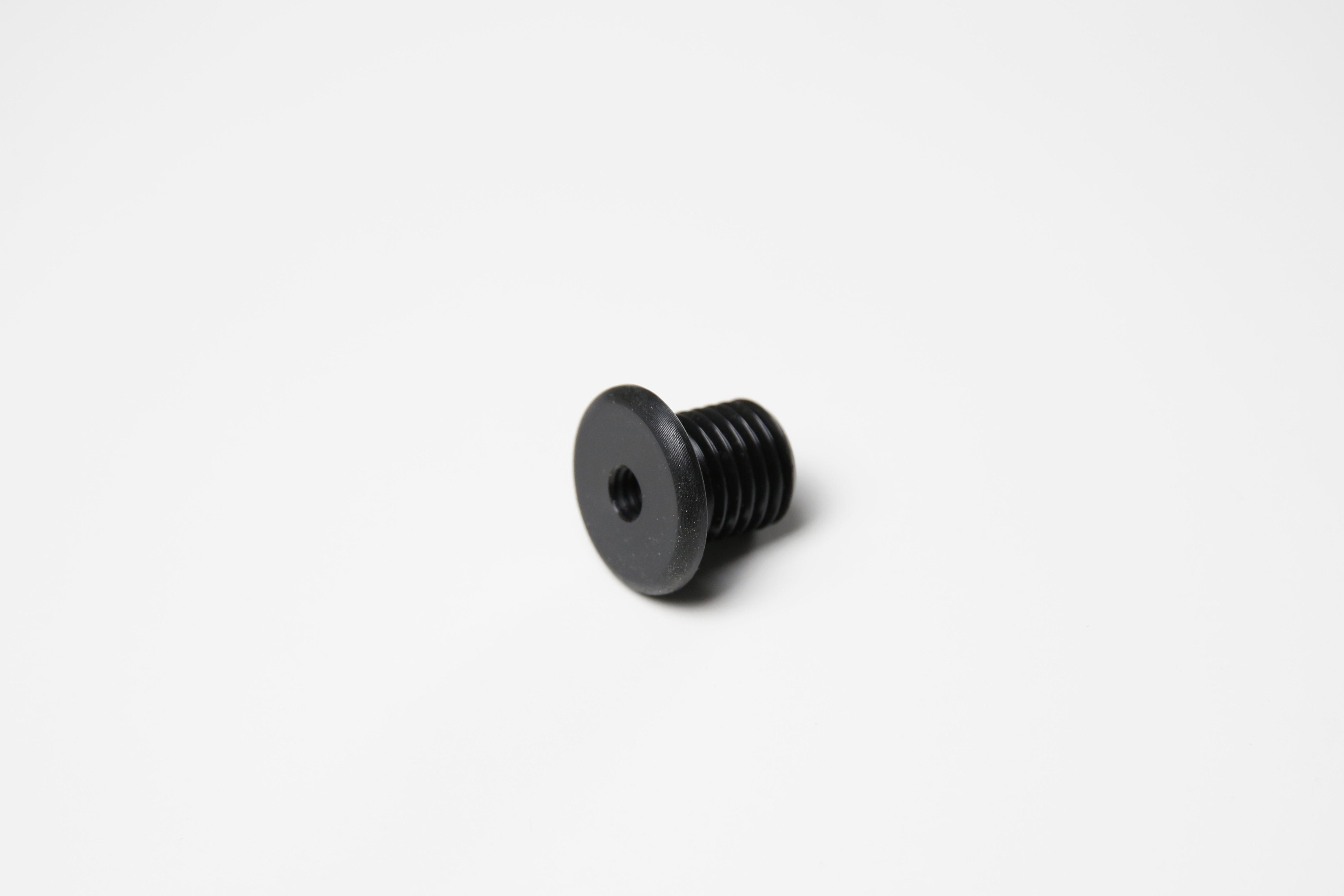

Adapter for Tripod Mini AB

 Phone Mount
