Ultra-Low-Power Ultrasonic Wired Mini wind meter (ULP Wired Mini)

    514.00 € 514.00 € 514.0 EUR

    514.00 €

    This combination does not exist.

    Add to Cart Buy Now

    - 30-day money-back guarantee
    - Free Shipping beyond 300€

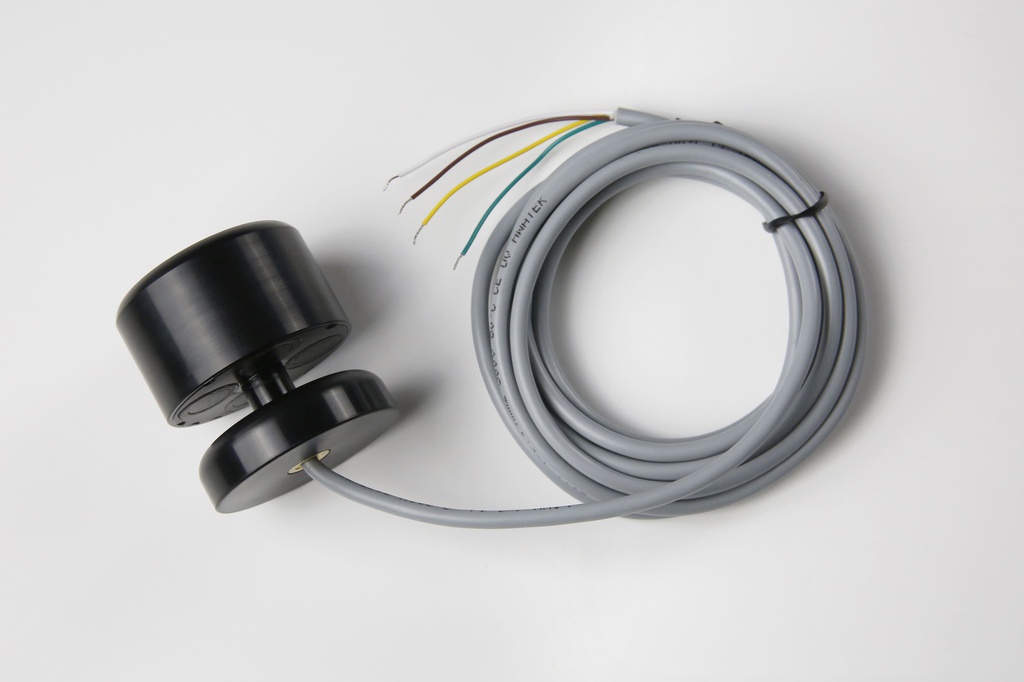

    Ultra-Low-Power Ultrasonic Wired Mini wind meter.


    Wind meter, a 45m/s IoT, Ultra-Low Power Ultrasonic Anemometer:


         Ultra-Low-Power (UART/ I2C): 0,15 mA @5V, 1Hz

        Small: 43x47 mm (1.69 x 1.85 in.)

         Light: 80 gr (2.82 oz.)




    Certifications




    Applications:


    Drones and aviation: Airports/ UAV

    Outdoors


    The package contains the following:


    • Ultrasonic ULP Wired Mini Wind Instrument plus 2 meter (6.5 ft) cable for connection*

    • Serial number reference on the side of the packaging.

    • A quick user guide on the back of the packaging and some more useful information for the customer.

    • M4 headless screw (x6)

    *USB converter cables are available here.


    Internal Reference Code:

    The SKU/CMI product number for the ULP Wired Mini 45m/s Wind Meter is CMI1038.


    Material
    Machined engineering plastic (black)


    Dimensions
    Diameter : 43 mm (1.69 in.)
    Height : 47 mm (1.85 in.)
    Weight : 78 grams (2.75 oz.)
    Wind Speed
    Range : 0.5-25 m/s (1.12 -100 mph) or  0.5-45 m/s (1.12 -56 mph)
    Accuracy : ±0.1 m/s at 10 m/s (0.22 mph at 22.00 mph)

    Wind Direction
    Range : 0-359º
    Accuracy : ± 1 at 10 m/s (22.37 mph)

    Wind Information

    Aparent wind speed & direction


    Sensors
    Ultrasonic transducers (4x)

     Sample rate
    1 Hz to 10 Hz (configurable)

    Power

    3.3 - 5 DCV



    Firmware
    Upgradable. Configuration via USB


    IP Code
    IPX8 protection grade


    Data Output
    UART/ I2C ( Autotransit, POLL Telegram)





    Data Sheet
    Instruction Manual
